In an aging society, medication non-adherence among elderly chronic disease patients poses a significant challenge. Traditional pill organizers are ineffective, and remote family support is often lacking. Our client, a visionary healthcare technology company, partnered with LKK Design to develop an intelligent medicine box system that seamlessly integrates into daily life, ensuring medication adherence and providing family peace of mind.

1. Product Transformation: Evolve from a simple tool to an integrated home health management terminal.

2. User-Centric Experience: Eliminate the clinical feel of medical devices with a home-friendly design.

3. Ecosystem Integration: Establish a complete "Hardware + Software + Service" ecosystem for chronic disease management.

Product Function Definition

Based on user research, we defined the core functional architecture:

• Scheduled Medication Management: Four independent compartments for morning, noon, evening, and bedtime doses.

• Intelligent Reminder System: Triple assurance via voice prompts, automatic compartment opening, and visual display alerts.

• Remote Monitoring & Management: Family members can set schedules and view adherence records remotely via a companion app.

• Health Data Connectivity: Syncs medication data to the cloud, creating personal health records.

• Telehealth Services: Integrated one-touch video consultation for access to professional medical support.

Design Research

Our user studies revealed key insights:

• Seniors often resist using devices that look like medical equipment.

• Effective reminders require engaging multiple senses.

• Family caregivers seek tangible reassurance about their loved ones' well-being.

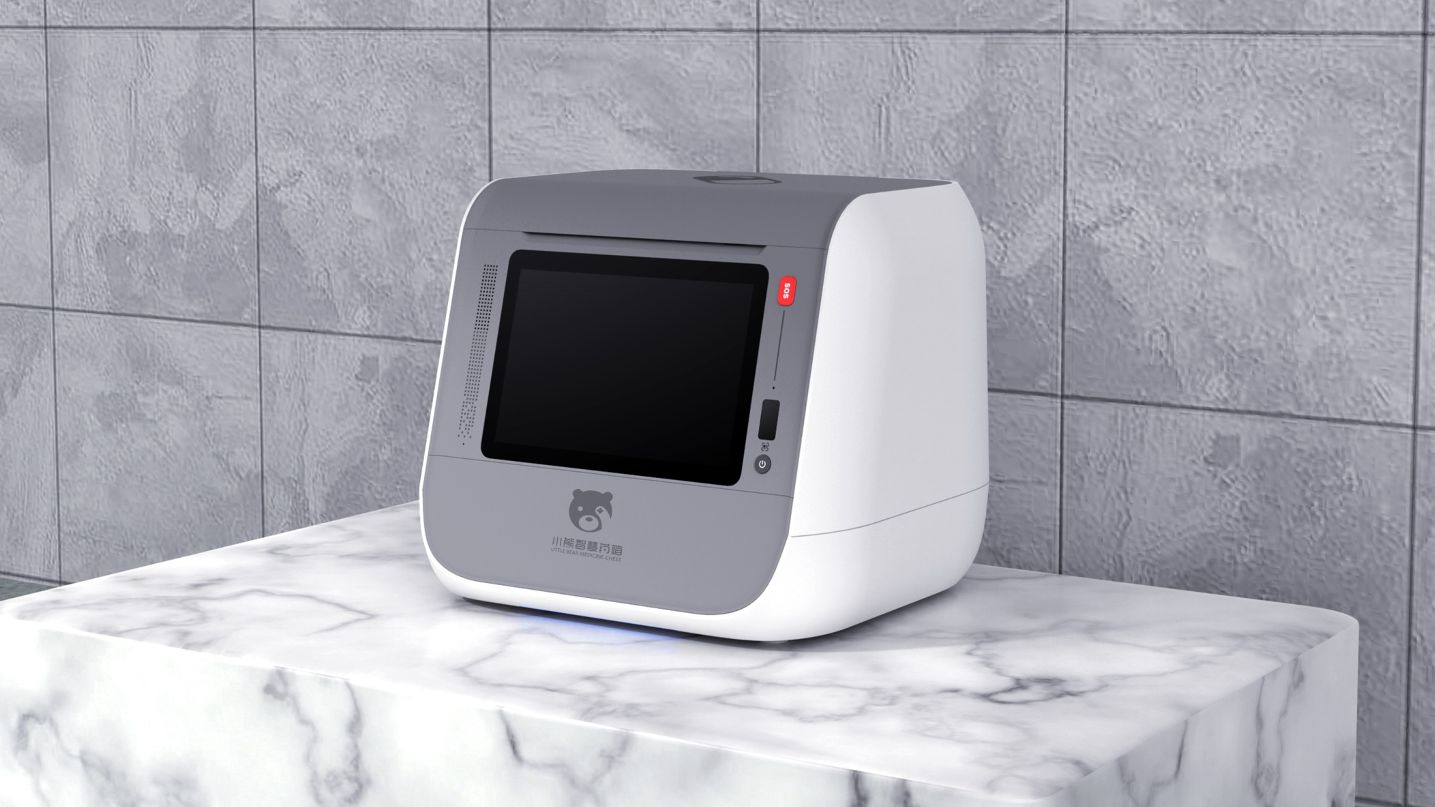

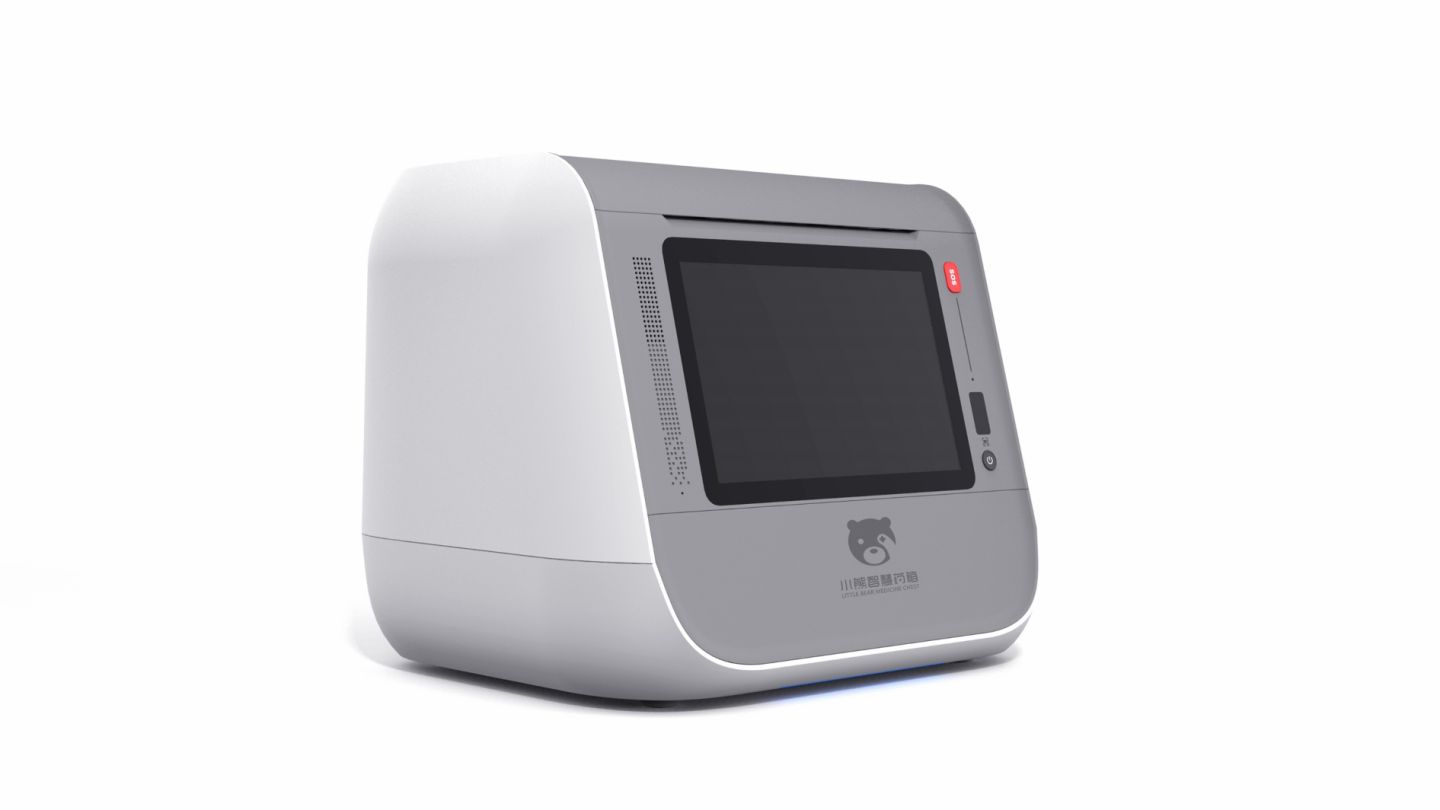

Industrial Design

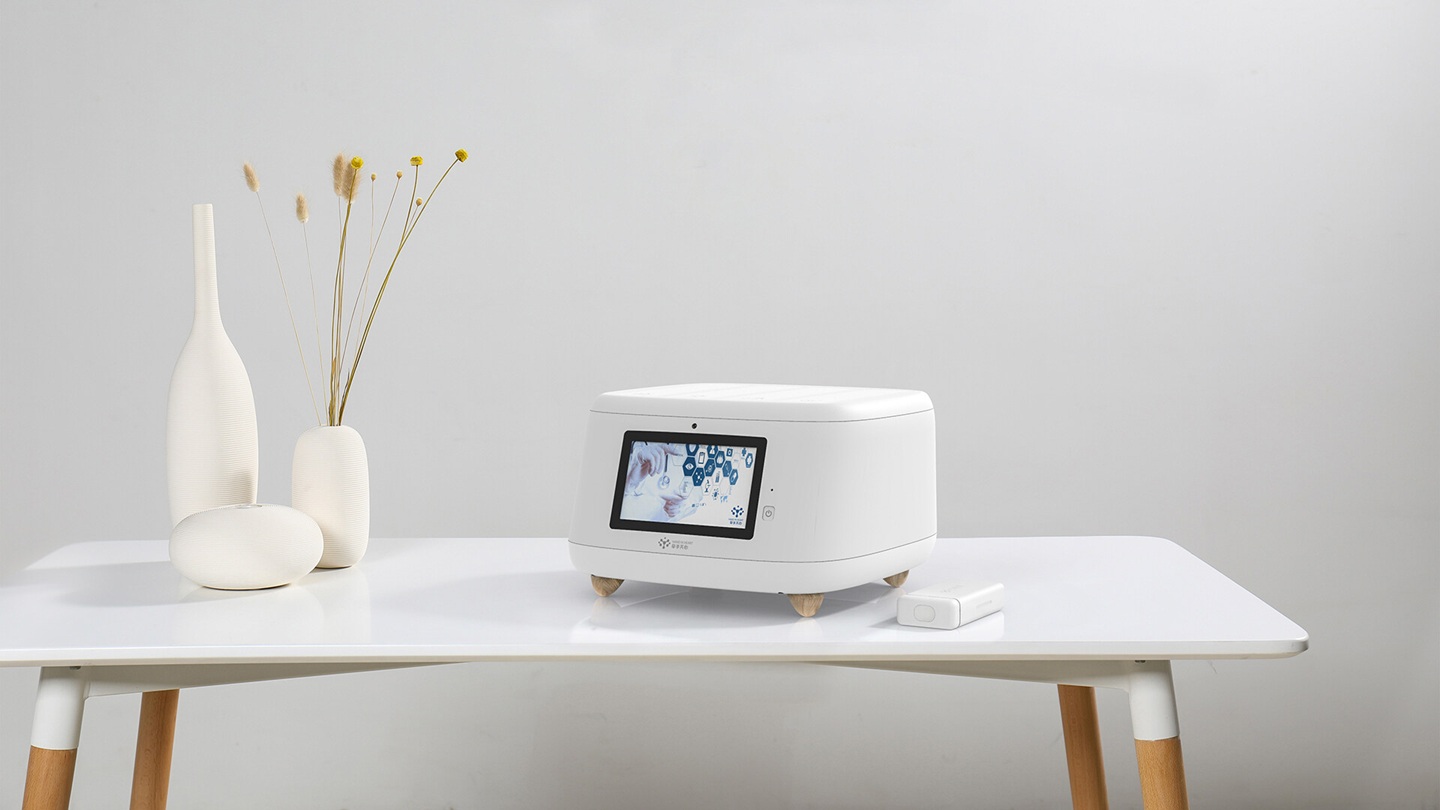

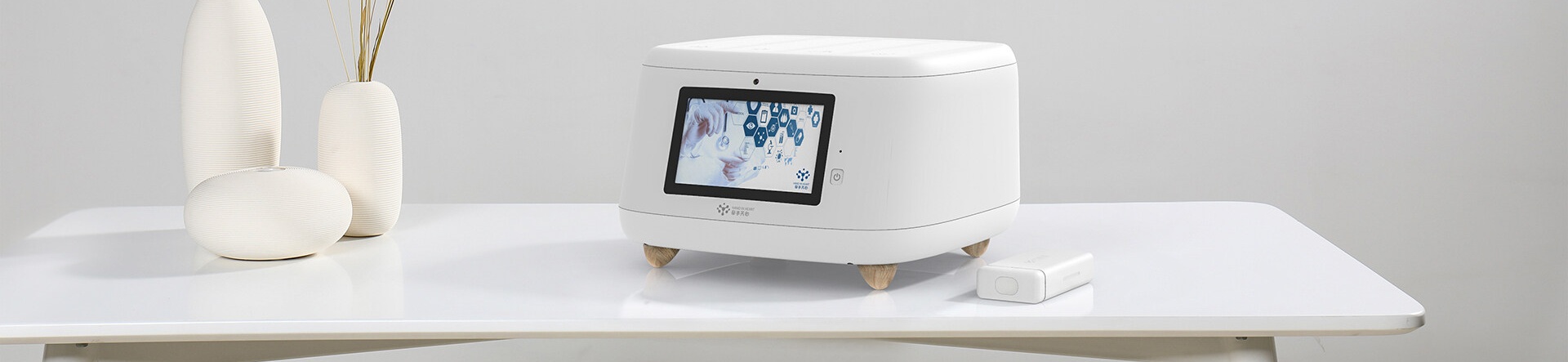

• Home Integration: Features a Nordic-inspired aesthetic with soft curves and natural wood-grain feet.

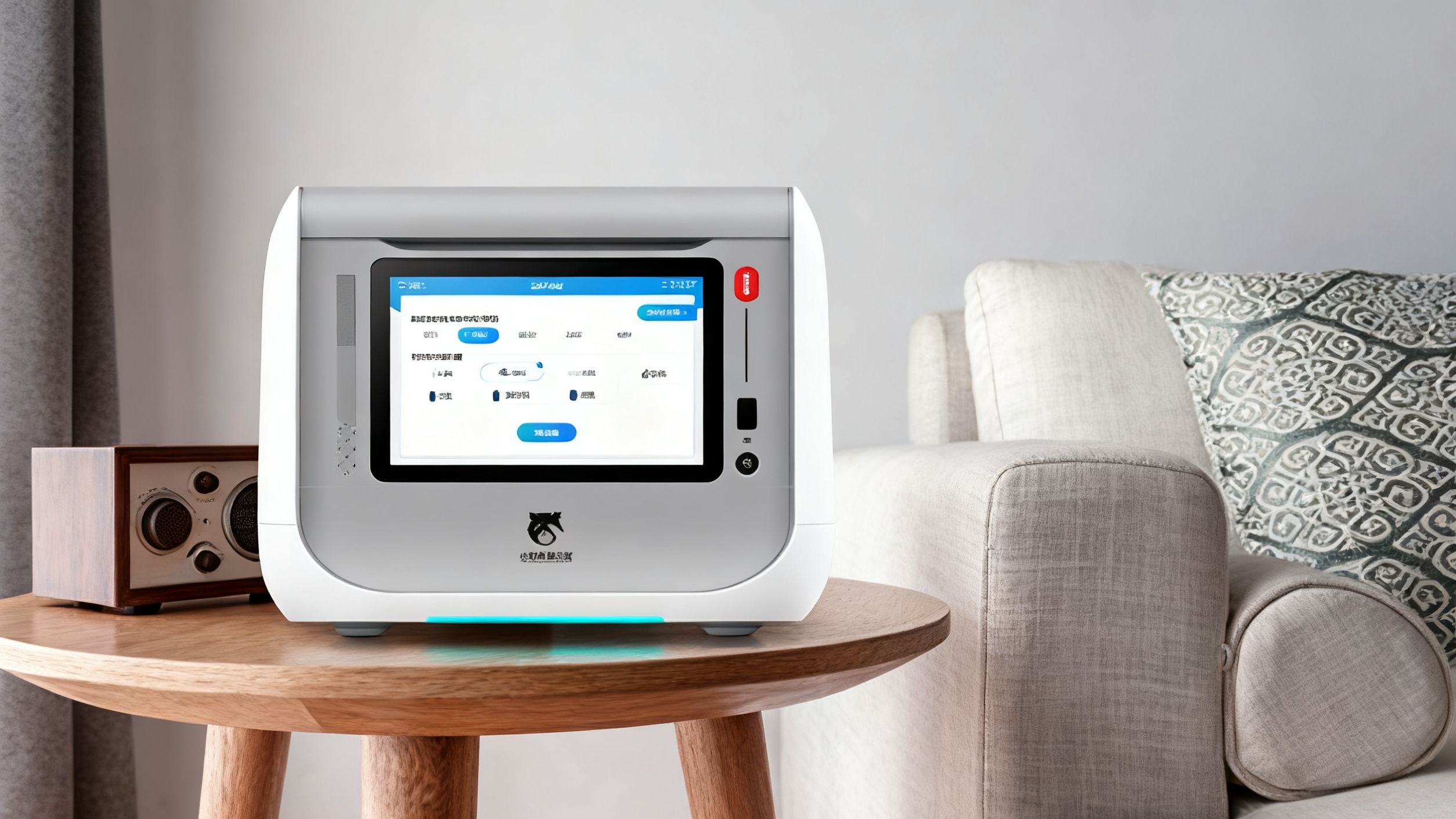

• Intuitive Interaction: A 7-inch high-definition touchscreen with large, legible icons and text.

• Material Selection: Matte-finish ABS plastic for a warm, durable feel.

• Color Palette: A clean white base accented with wood tones for a residential feel.

Mechanical Structure Design

• Automatic Opening Mechanism: Each compartment uses an independent worm gear drive for reliable, consistent opening.

• Damping System: A rotary damper ensures compartments open gently, preventing spills.

• Modular Layout: Components are designed for easy assembly, maintenance, and repair.

• Reliability Testing: Mechanisms underwent over 100,000 open-close cycles to ensure longevity.

Electronic Design

• Hardware Architecture: Utilizes a Quad-core ARM Cortex-A53 processor, Wi-Fi/Bluetooth 4.2 connectivity, a high-sensitivity microphone/speaker array, and a large-capacity battery supporting 72-hour standby.

• Firmware Development: Built on a real-time OS for reliable task scheduling, with optimized power management algorithms and multi-layer data security.

• Software & Cloud: Features a custom Android-based OS with a senior-friendly UI, a cross-platform iOS/Android app, and cloud infrastructure supporting millions of concurrent devices.

Prototyping & Testing

• Developed 3 functional prototype iterations to validate core mechanisms.

• Created 5 appearance models to refine the CMF (Color, Material, Finish)方案.

• Conducted 3 rounds of user testing to gather feedback and improve usability.

• Completed environmental reliability testing and safety certification.

Mold Development & Manufacturing

• Mold Design: Implemented a 1x2 cavity layout for efficiency. Used in-mold decoration for key surfaces and texturing processes to enhance grip and feel.

• Mass Production: Established a comprehensive quality control system with 100% automation for critical steps. Achieved a first-pass yield of over 95% through stringent supply chain management..

User Value

• Improved Health Outcomes: Increases medication adherence to over 98%, effectively managing chronic conditions.

• Peace of Mind: Enables remote family oversight, reducing caregiver anxiety.

• Ease of Use: An intuitive interface allows seniors to use the device independently.

• Preserved Dignity: The home appliance aesthetic enhances daily life without stigma.

Commercial Value

• Market Differentiation: Unique design and positioning created a strong competitive advantage.

• Service Platform: The hardware serves as an entry point for scalable chronic disease management services.

• Brand Enhancement: Solving a core social need strengthened the client's brand reputation for responsibility and innovation.

• Data Potential: Accumulated, anonymized health data provides long-term strategic value.

Through this collaboration, LKK Design delivered a complete product innovation solution, helping our client achieve commercial success while making a positive social impact by enhancing the quality of life for the elderly.
