How to Design a Plastic Housing for Electronics: Engineering Guide

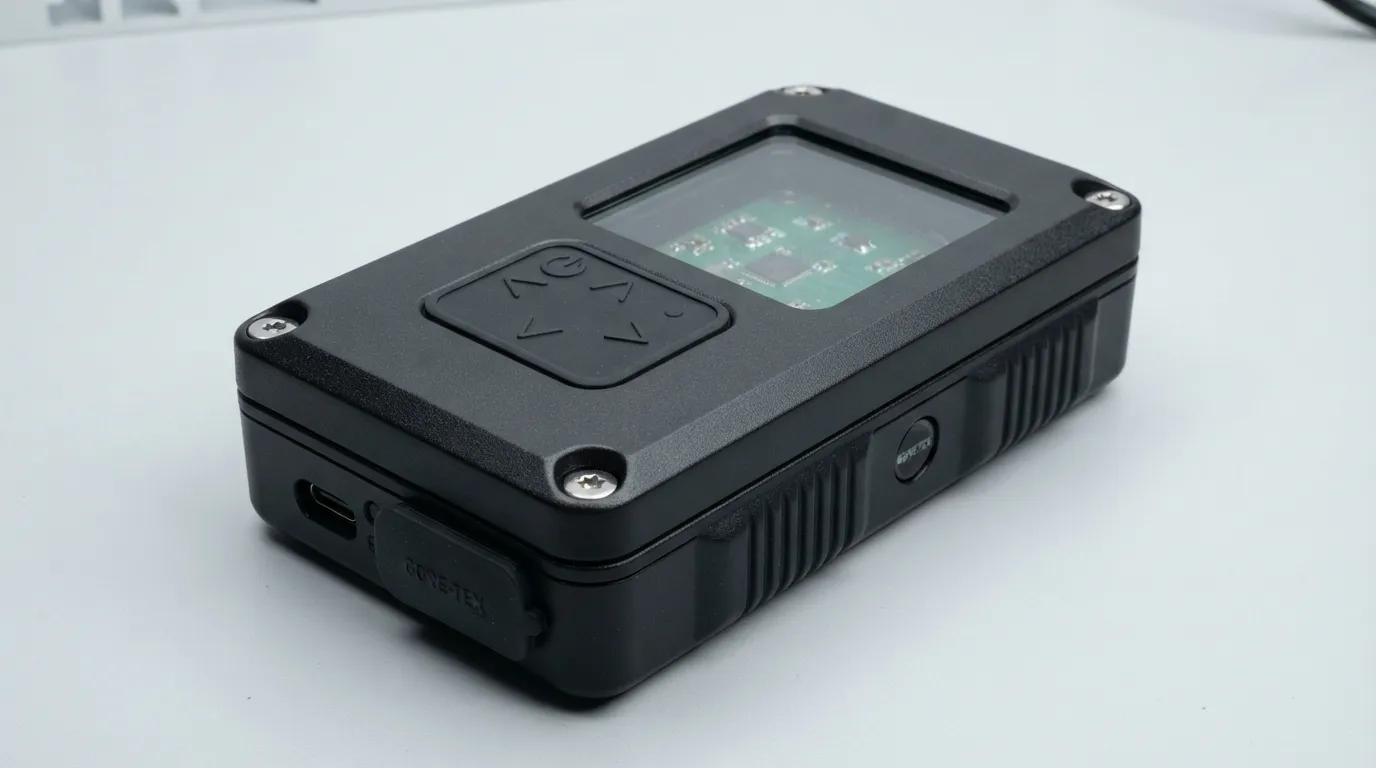

• Designing a plastic case to house an electronic product is much more than just creating a pretty case. An effective plastic housing design should be able to safeguard the electronics, handle heat, support assembly, survive the real world, and be practical to make.
• The ideal design of an electronics enclosure begins prior to the original CAD design. The engineers should be aware of the PCB, components, operating environment, loads, interfaces, production method, and target cost. The mechanical design workflow of LKK also starts with requirements, environmental conditions, interfaces, material selection, simulation, tolerance analysis, prototyping, and manufacturing support.

How to Design a Plastic Housing for Electronics?

1. Specify the Housing Requirements First

How to design a Plastic Housing for Electronics? The first step begins with the product and not the plastic. Determine what the electronic device housing should do.

Consider:

•          PCB size and mounting positions.

•          Height and clearance of components.

•          Temperature and humidity of operation.

•          Vibration and impact to be expected.

•          IP rating and ingress protection.

•          Connector and cable positions

•          Position of display and buttons.

•          Assembly method

•          Target production volume

•          Required surface finish

Service and maintenance needs.

Environmental profiling is particularly relevant in the case when the product could be subjected to temperature variations, vibration, moisture, or strenuous conditions of operation. These aspects directly affect the design of plastic enclosures and the choice of material.

2. Assemble The PCB

The actual electronics should be the basis of a PCB enclosure rather than an approximate board shape. Design a 3D model of the PCB and large parts. Include connectors, batteries, displays, switches, heat-generating components, antennas, and cables.

There must be adequate component clearance and PCB clearance in the housing to avoid interference in assembly or operation. To design PCB housings reliably, engineers typically resort to:

•          PCB mounting points

•          PCB standoffs

•          Locating features

•          Connector openings

•          Button cutouts

•          Display openings

•          Cable management channels

•          Strain-relief features

This electrical and mechanical coordination assists in eliminating late redesigns. Another point LKK focuses on is tight cooperation between mechanical and electronics teams to ensure PCB geometry, mounting points, connectors, and thermal paths cooperate.

3. Choose the Appropriate Plastic Material

The choice of material influences the strength, appearance, temperature resistance, molding behavior, and cost.

Common choices include:

• ABS plastic housing: This is a convenient choice in most consumer electronics as it has good impact resistance, dimensional stability, and surface quality.
• Polycarbonate enclosure: This is applicable in cases where greater impact resistance and toughness are needed.
• ABS-PC housing: This is a material that integrates both materials and can be applicable in demanding electronic products.
• Polypropylene housing: Lightweight and resistant to chemicals, but the rigidity and molding characteristics should be taken into consideration.
• Nylon enclosure: It is used in applications where high mechanical performance and wear resistance are needed.

When the product needs flame resistance, UV resistance, heat resistance, or special electrical properties, other engineering plastics can be chosen. In the case of products that are a must, the engineers can also stipulate flame-retardant plastics or materials that have a suitable UL94 rated plastic classification.

The choice of the right plastic material must take into account strength, rigidity, toughness, and water absorption, temperature range, molding behavior, shrinkage, and long-term dimensional stability. These factors are specifically mentioned by LKK when it comes to assessing plastic materials.

4. Control Wall Thickness

One of the most significant variables in the process of injection molding design is the wall thickness. Many injection-molded thermoplastics have a typical starting range of about 1.5 to 3.0 mm, although the proper value depends on the material, geometry, flow length, structural needs, and molding process.

Avoid sudden changes in thickness. Thick sections will cool differently than thin sections and may cause sink marks, internal stress, or dimensional variation. Uniform walls also assist in controlling:

•          Cooling time

•          Material flow

•          Shrinkage

•          Warpage

•          Cycle time

•          Part weight

Ribs are usually more effective than merely increasing the overall thickness of the wall when additional stiffness is required.

5. Add Ribs and Bosses Carefully

Rib design provides a plastic enclosure with more rigidity without significantly adding to the material consumption.

• A good place to start is to maintain rib thickness between 40 and 60 percent of the adjacent nominal wall thickness, as per the material and cosmetic needs.
• Ribs that are poorly designed may leave sink marks on the other surface. Maintain the right proportions of them and, where feasible, employ smooth transitions.
• Boss design is also crucial in screw attachment and PCB mounting. The base of bosses must be sufficiently supported, the thickness of the wall must be adequate, and the clearance of the screw or insert must be sufficient.

Stress concentration can also be minimized by rounded corners and smooth transitions. The mechanical design advice of LKK specifically mentions the plastic thickness, stiffener design, boss size, rounded corners, and screw design as significant factors.

6. Before You Make the Mold, Use DFM

Here, DFM of plastic parts can save a lot of time and cost. Design for injection molding should check:

•          Wall thickness

•          Draft angles

•          Undercuts

•          Parting lines

•          Gate locations

•          Ejection points

•          Ribs and bosses

•          Shrinkage

•          Tool access

•          Assembly requirements

It is not merely to produce a moldable part. The aim is to develop an injection-molded housing that can be manufactured in a consistent volume and at the required cost. Possible filling issues, cooling variations, shrinkage, and warpage can also be determined using mold-flow analysis before tooling. LKK outlines the mold-flow simulation and shrinkage compensation as a component of its mold development process.

Conclusion

How to Design a Plastic Housing for Electronics? Many little engineering choices combine to create a strong plastic enclosure to house electronics. The final product is dependent on material, wall thickness, draft, ribs, bosses, tolerances, thermal paths, PCB mounting, and molding strategy. Prepared to transform a housing idea into a product to manufacture? Research LKK Mechanical Design Services and consult the engineering team about your needs.
