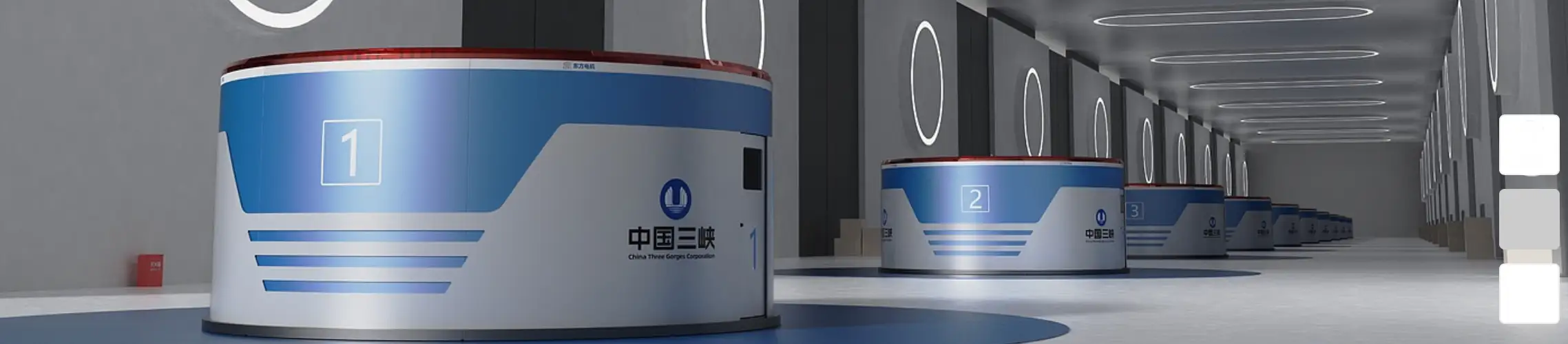

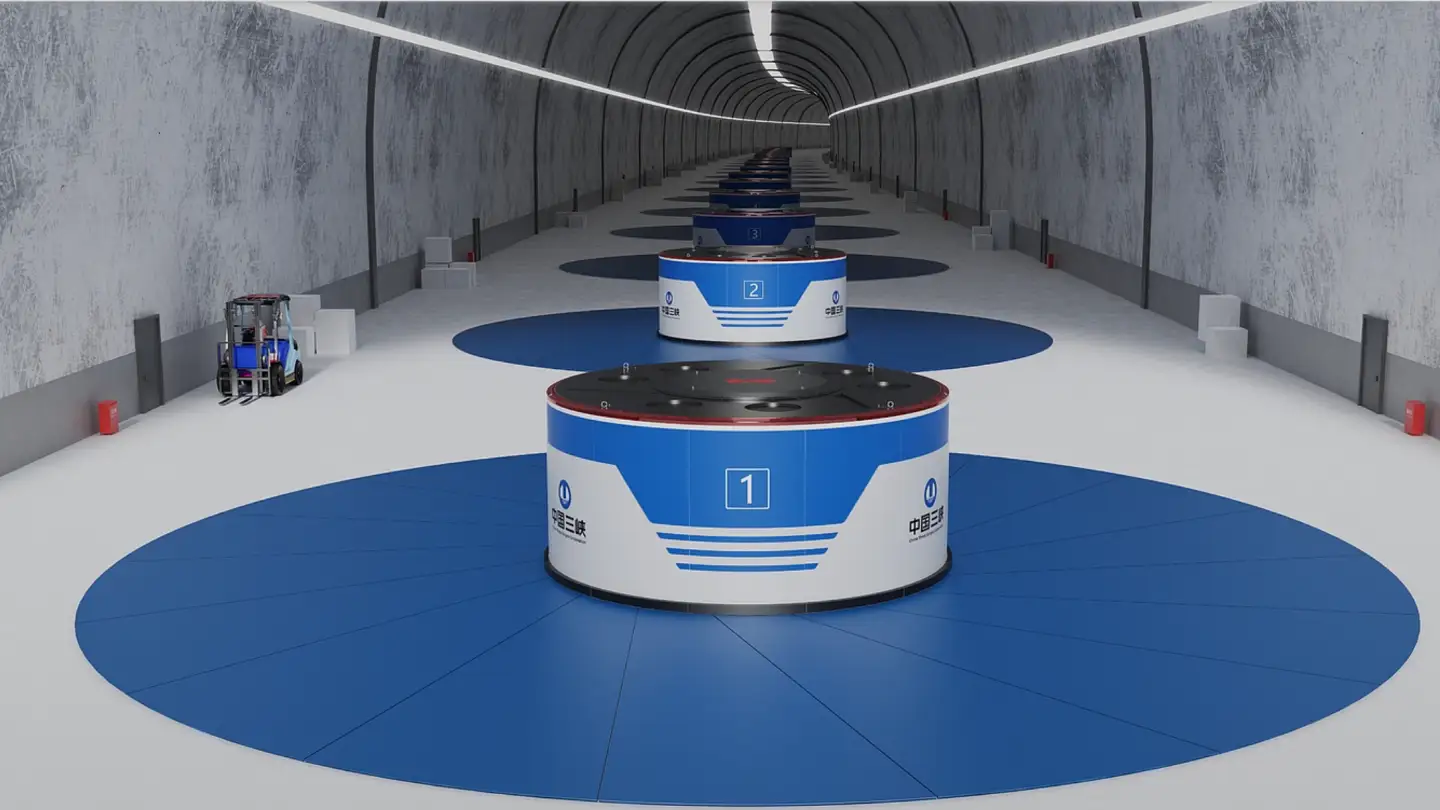

Three Gorges Turbine Generator Cover

The Three Gorges Power Station – the world's largest hydroelectric project – has long relied on massive, function-only turbine generators. For decades, these giants were hidden behind coarse, industrial metal shrouds. But in an era where operational efficiency, worker experience, and even industrial tourism matter, Dongfang Electric (DEC), China's leading power equipment manufacturer, partnered with LKK Design to reinvent the generator cover for the station's flagship turbines.

The challenge was threefold:

• Protection: Shield the generator from high humidity, dust, and temperature fluctuations inside the dam's powerhouse.

• Maintenance: Radically improve access for routine inspections and major overhauls.

• Image: Transform a purely functional shell into an icon of "national heavyweight engineering" – clean, smart, and even visit-worthy.

LKK Design rejected the traditional "iron cage" approach. Instead, we proposed a modular, human-centric, intelligent enclosure built on three pillars:

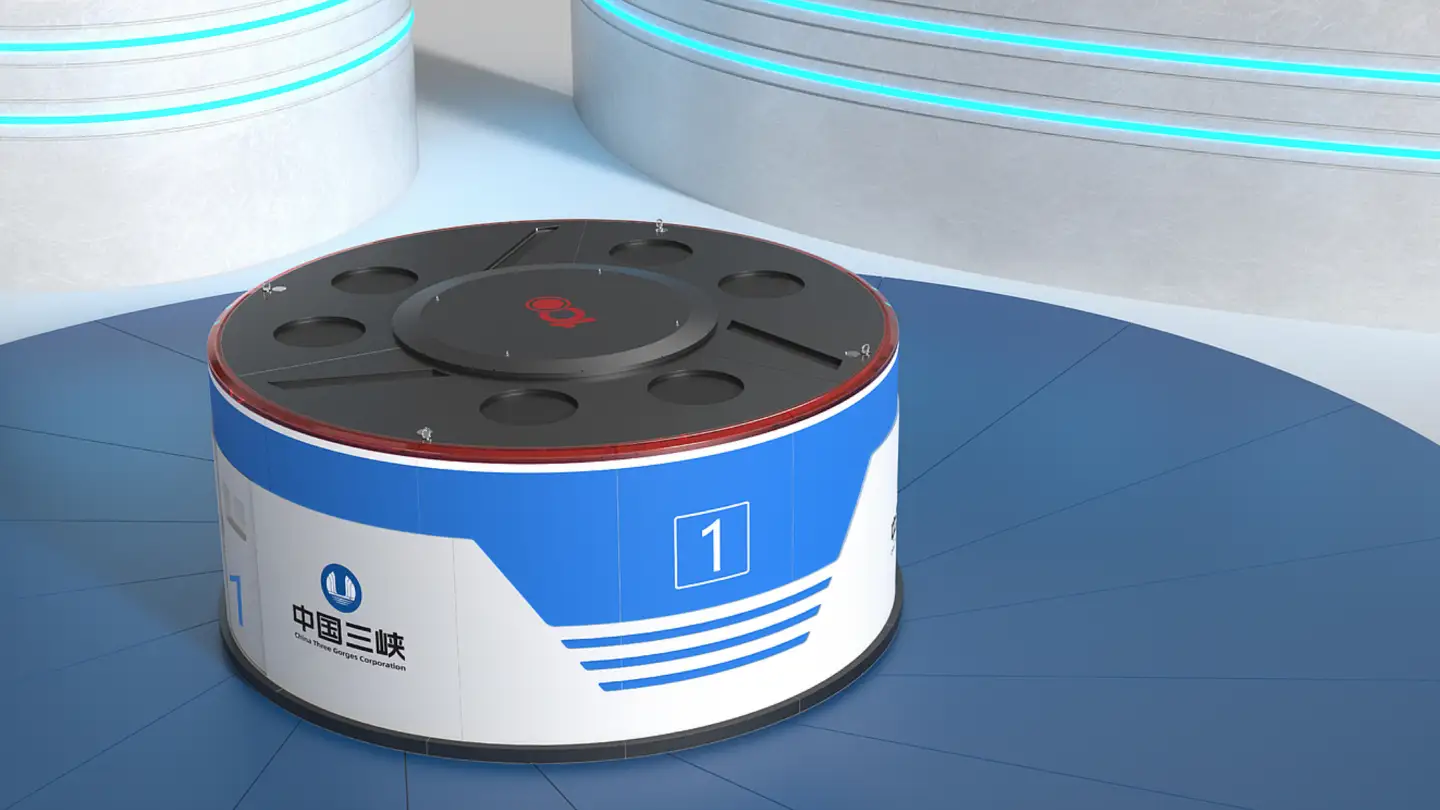

Modular Panel System

The entire generator cover is divided into standardized, lightweight units – an aluminum alloy frame with transparent polycarbonate (PC) panels. Any section can be removed by one person without a crane. Routine maintenance time dropped by 40% compared to the old design.

Human-Factors First

• All control panels and gauges are now at 1.2–1.5m (golden zone) height.

• Foldable work platforms, integrated LED task lights, and tool holders are built into key access points.

• Internal walkways are 800mm wide, allowing two technicians to pass side-by side.

"River Pulse" Visual Language

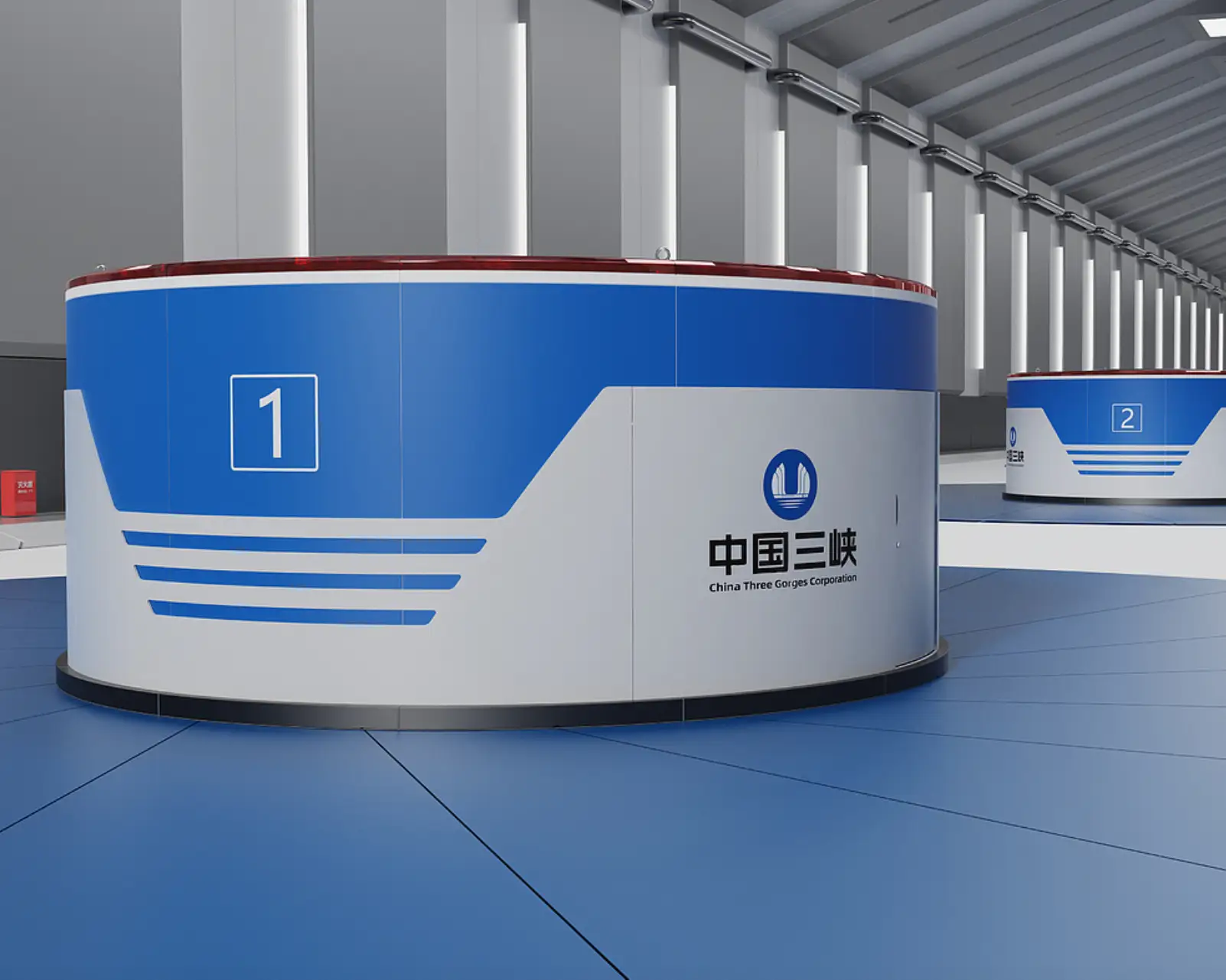

The cover's surface features a flowing, gradient texture inspired by the Yangtze River's currents. It's not just aesthetic – the ribs guide airflow, reduce dust accumulation, and integrate glow-in-the-dark safety stripes. The final color scheme: Three Gorges Blue + Industrial Silver.

We followed LKK's four-stage collaborative process to ensure the product design and product development phases translated perfectly into manufacturable, shippable hardware.

Phase 1: Design Research

• On-site immersion: Measured humidity, vibration, electromagnetic fields, and actual walkways at the Three Gorges powerhouse.

• User interviews: Talked to 12 maintenance engineers to map 23 specific pain points (lost screws, no footholds for high areas, reflective observation windows).

• Benchmarking: Analyzed covers from GE and Voith to identify real differentiation opportunities.

Phase 2: Industrial Design (ID)

• Generated 15 concepts, then down-selected 3 via VR assembly simulations.

• Built an adjustable physical mockup to test every repair posture – door angles, platform heights, and visibility.

• CMF engineering: Selected UV-resistant, V-0 flame-retardant PC (4H hard coating) and an aluminum frame with anodized + fluorocarbon coating (C5-M corrosion protection).

Phase 3: Mechanical Design & Simulation

• Structural FEA: Simulated wind loads (typhoon-level 15), seismic forces, and generator vibration coupling. Optimized weld spots and rib layouts.

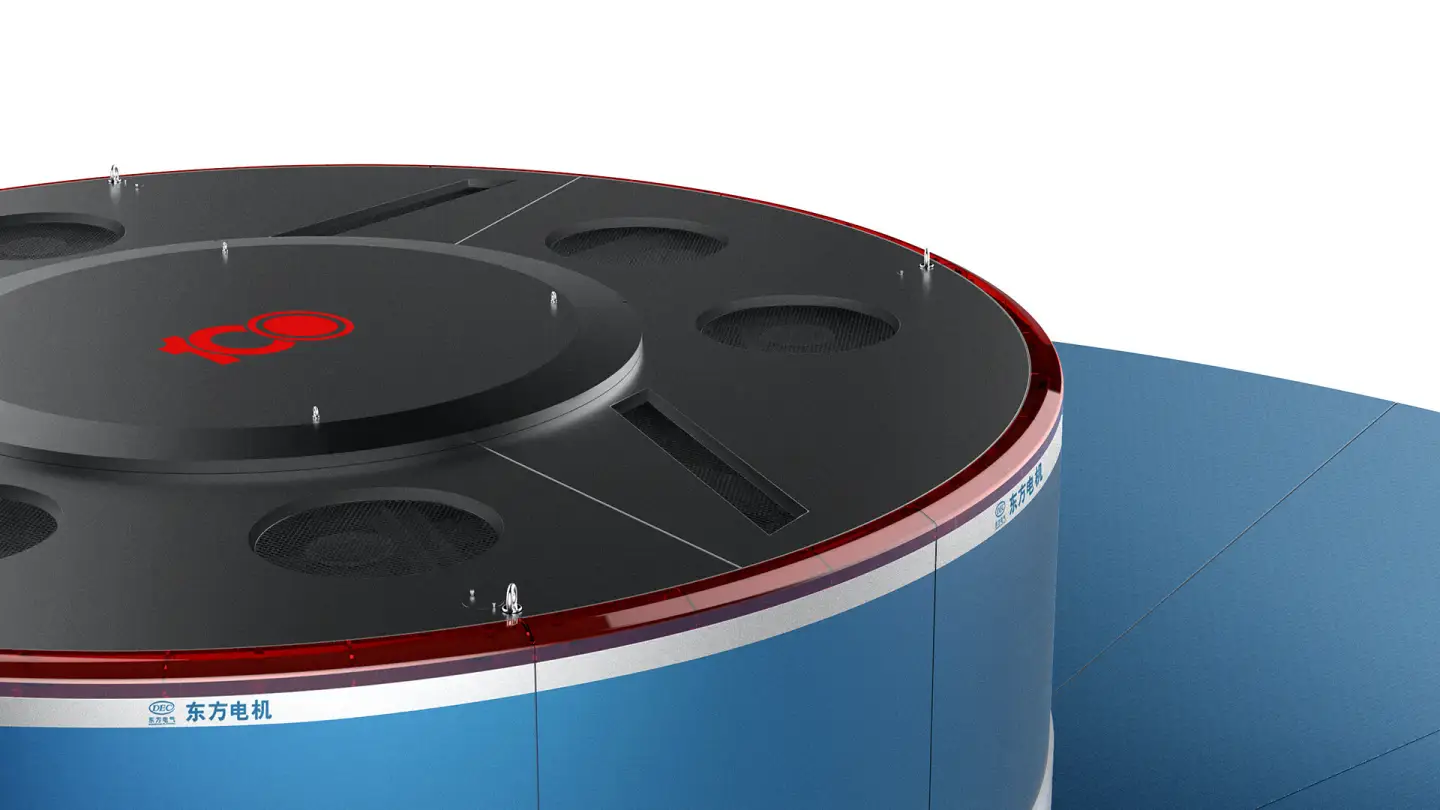

• Sealing & cooling: Designed a labyrinth seal (IP54 rating) plus hidden ventilation louvers to prevent local overheating.

• Quick-release mechanism: Patented "turn-to-lock" fasteners – a single panel can be removed or installed in under 3 minutes with no tools.

Phase 4: Manufacturing & Logistics

• Fabrication: Laser-cut and robot-welded frames, with 100% ultrasonic inspection on critical welds.

• Pre-assembly: Full dry-run at Dongfang Electric's factory to catch any interference issues.

• Logistics for a dam: The Three Gorges access roads have a 4.5m height limit. We split the enclosure into modules ≤3.8m wide, shipped them on vibration-damping mounts, and used rails + a gantry crane for "block-stacking" assembly on site – zero scratches, zero collisions.

Operational Value

• Time saved: Daily inspection rounds fell from 90 to 50 minutes. A major bearing replacement now saves 2 full days of downtime.

• Equipment life: Internal temperature/humidity swings reduced by 30%; electrical component life is projected to increase by 25%.

Industrial & Business Value

• New standard: The resulting Design Guide for Hydro Generator Covers has been adopted by Dongfang Electric for its subsequent Baihetan and Wudongde projects.

• Industrial tourism: The cover includes a large transparent window and LED mood lighting. It is now a fixed stop on the Three Gorges industrial tour – over 100,000 visitors per year.

Social & Aesthetic Value

• Changing perceptions: The project proved that even 100-ton industrial equipment can be precise, elegant, and human-friendly.

• Cultural resonance: At night, the "river pulse" texture glows softly, echoing the actual Yangtze current – turning a generator cover into a subtle monument of Chinese engineering.

Final Word
The LKK Design × Dongfang Electric collaboration shows that deep product development for heavy industry is not just about tolerances and torque. It is about observing a technician climbing an awkward ladder, feeling the humidity inside a powerhouse, and seeing a child press their face against a viewing window. That is how you turn a generator cover into an experience – and a national project into a design landmark.
