Client: ALPHAESS ENERGY
The global shift towards clean energy is undeniable. However, the intermittent nature of renewable sources like solar power creates a critical need for efficient energy storage. As a key player focused on European and American markets, ALPHAESS ENERGY develops residential energy storage solutions that empower households to manage high electricity costs and achieve energy independence. They partnered with LKK Design to create a next-generation product that would be powerful, intelligent, and seamlessly integrated into the modern home.

ALPHAESS ENERGY aimed to launch a disruptive product in the home energy sector. Their objectives for the Smile S5 series were multifaceted:

• Modular Scalability: Enable users to easily customize, assemble, and expand their system's capacity based on household consumption, much like building with Lego or Tetris.

• Reduced Total Cost of Ownership: Streamline the installation and maintenance processes to significantly lower labor and transportation costs.

• Intelligent Management: Integrate smart APP control for remote monitoring, grid interaction, and energy scheduling.

• Aesthetic Integration: Break away from the industrial, utilitarian look of traditional equipment with a modern, minimalist design suited for residential spaces.

LKK Design employed a user-centric, full-spectrum design and engineering approach to bring the ALPHAESS "Smile S5" to life.

1. Design Research
Our team conducted in-depth research into European and American household energy habits, installation environments, and user pain points. We identified key user desires for flexibility, simplicity, and a product that wouldn't detract from their home's aesthetics. These insights directly informed the modular and user-friendly design direction.

2. Industrial Design

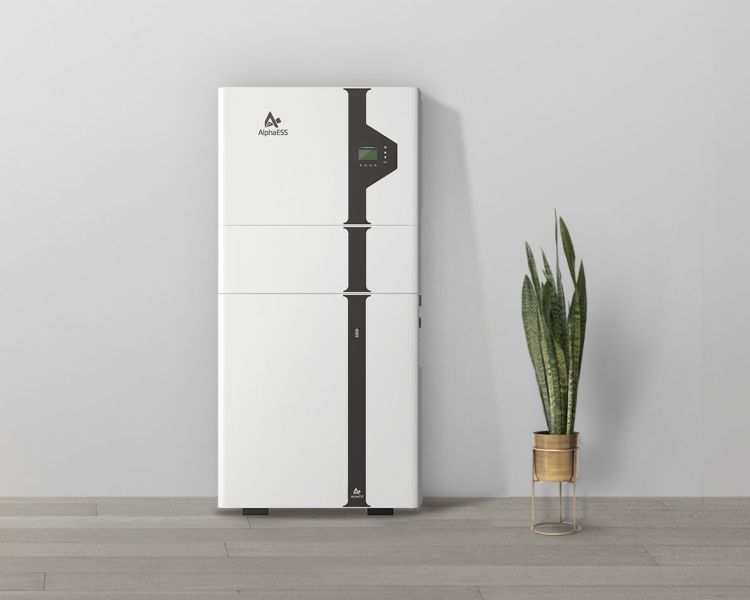

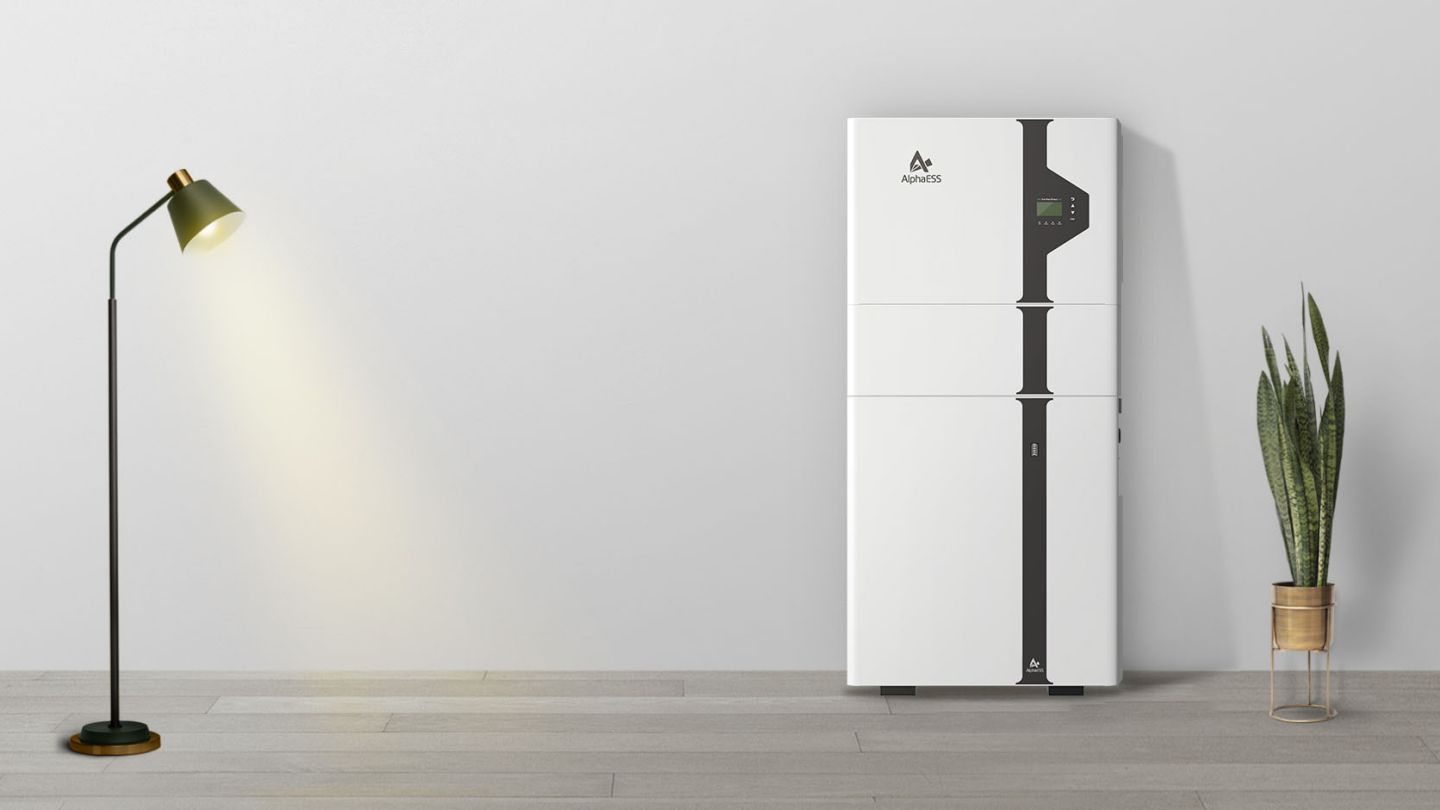

The "Smile S5" was conceived to be approachable and elegant. We broke from conventional rigid forms, adopting a soft, minimalist language with a friendly "smiling" curve. The use of residential-appliance materials and a clean color palette allows the unit to blend harmoniously into garages, utility rooms, or even living spaces, transforming the energy storage system from a piece of hardware into a desirable home product.

3. Mechanical Structure Design
This was the core of the project's innovation. To achieve true plug-and-play modularity, our engineers developed a groundbreaking mechanical architecture:

• Integrated Stacking System: We designed a single-action stacking structure that combines guidance, locking, and electrical connection into one motion. Precision-molded guide rails and self-locking buckles ensure modules snap securely into place with an audible "click," eliminating the need for tools or complex assembly.

• Blind-Mate Power Bus: A foolproof, high-current "blind-mate" connector system was engineered to allow for safe and effortless electrical connection during stacking. This connector is designed to be shock-proof and reverse-insertion proof, making the expansion process completely safe for the end-user.

• Lightweight yet Robust Casing: Through topology optimization, we developed a hybrid shell using a flame-retardant (V-0) plastic exterior over a reinforced aluminum internal frame. This achieves an optimal balance of lightweight portability and the structural integrity to support multiple stacked units.

• Integrated Thermal Management: Passive cooling vents are seamlessly integrated into the product's form, promoting efficient airflow and heat dissipation to ensure battery longevity and safety under various load conditions.

4. Prototyping and Testing
Multiple prototyping iterations were built and subjected to rigorous tests. We simulated real-world scenarios, including vibration during transport, long-term stack load endurance, and connector mating cycles. User testing sessions validated the intuitive installation process, ensuring that our design for ease-of-use was successfully translated from concept to a tangible, reliable product.

The ALPHAESS Smile S5, born from this strategic partnership, delivers exceptional value:

• Energy Independence & Cost Savings: It enables households to store solar energy for day and night use and sell surplus back to the grid, reducing electricity bills and generating income.

• Uninterrupted Power Supply: The integrated UPS function provides instant backup power during outages, ensuring essential home functions remain operational.

• User-Centric Experience: The revolutionary modular design empowers users with unparalleled flexibility and ease of use, reducing reliance on professional installers for expansion.

• Sustainable Lifestyle: By making clean energy accessible and reliable, LKK Design helped ALPHAESS ENERGY promote a low-carbon, sustainable future for households worldwide.
