Our client, RHWCH, an ambitious startup, aimed to enter the competitive electric vehicle charging infrastructure market. The core challenge was twofold: navigating a landscape of homogeneous products and achieving rapid market entry on a limited startup budget. They needed to move from concept to mass production swiftly to seize the market window. RHWCH partnered with LKK Design, trusting our expertise to create a differentiated power charging station design that would stand out through superior user experience and a unique product identity.

The project's success hinged on achieving specific, critical objectives:

1. Establish a Unique Product Identity: Create a distinctive and memorable design to break away from the generic "metal box" aesthetic prevalent in the market.

2. Optimize User Experience: Re-engineer the entire user interaction flow—from authentication and payment to handling the charger—to be intuitive, efficient, and user-friendly.

3. Ensure Structural Reliability and Thermal Management: Innovate the cooling system to ensure high performance while meeting stringent outdoor IP ratings for rain and dust protection.

4. Control Costs and Ensure Manufacturability: The design had to be practical for manufacturing, considering cost, processes, and supply chain to guarantee on-time mass production.

Our team at LKK Design applied a systematic design process, integrating aesthetics, ergonomics, and engineering to deliver a comprehensive solution.

1 Design Research

We began with an in-depth analysis of the DC charging pile market, competitor products, and end-user behaviors. Our research identified key pain points: complicated operation sequences, harsh nighttime lighting, and messy cable management. These insights directly informed our design strategy and innovation priorities.

2 Industrial Design

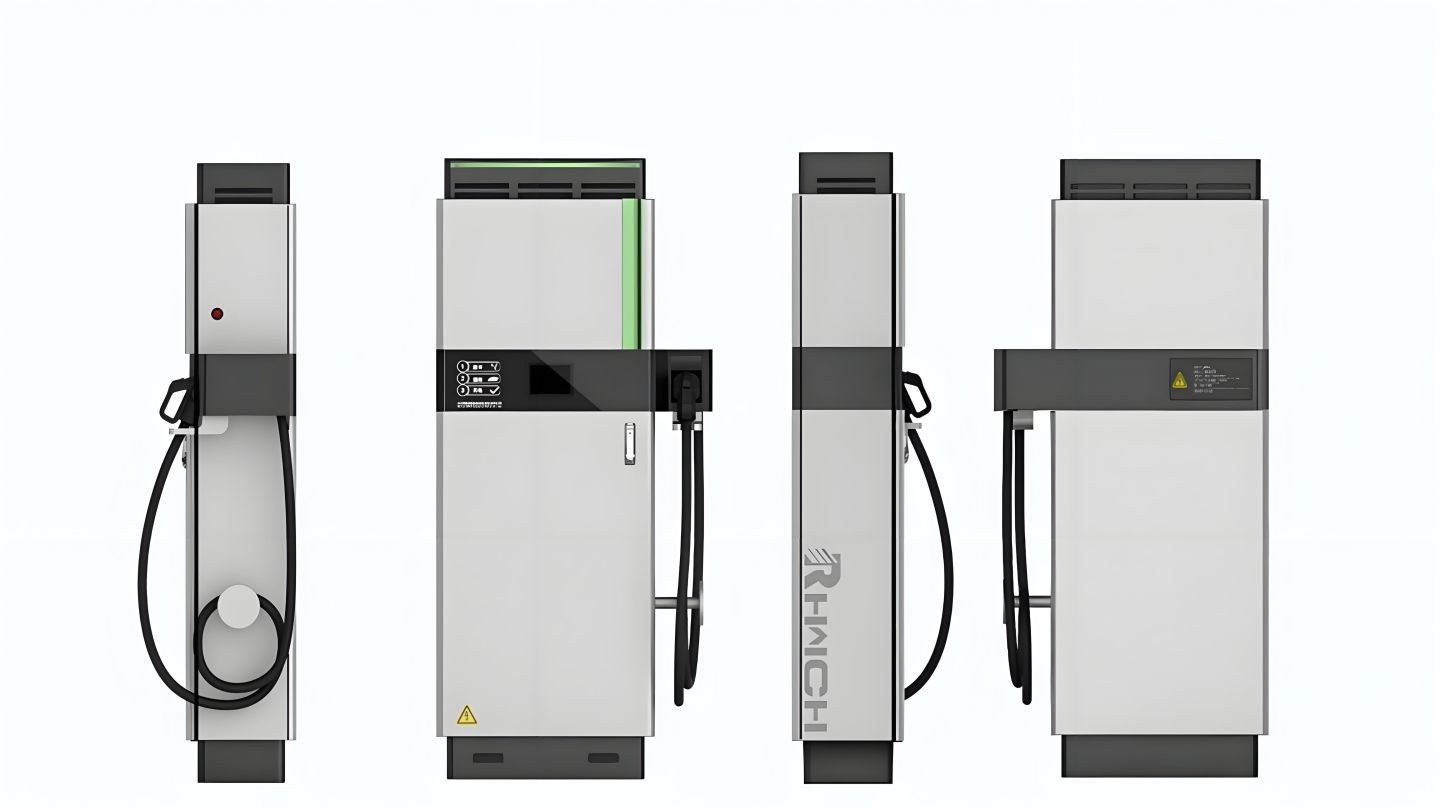

• Branded Aesthetics: We developed a clean, technical, and robust form factor. The most iconic element is the vertical indicator light strip, which serves as a powerful and unique brand signature.

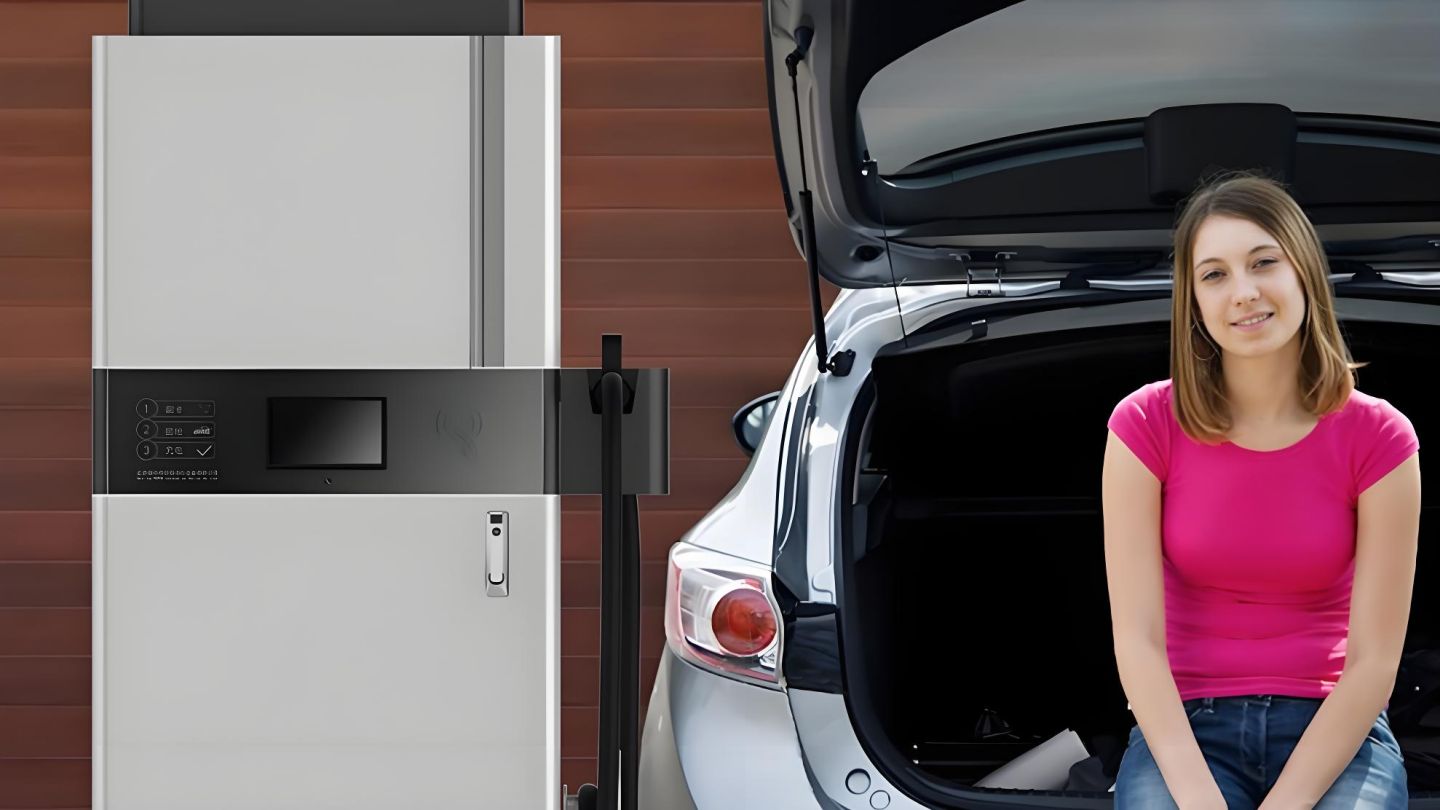

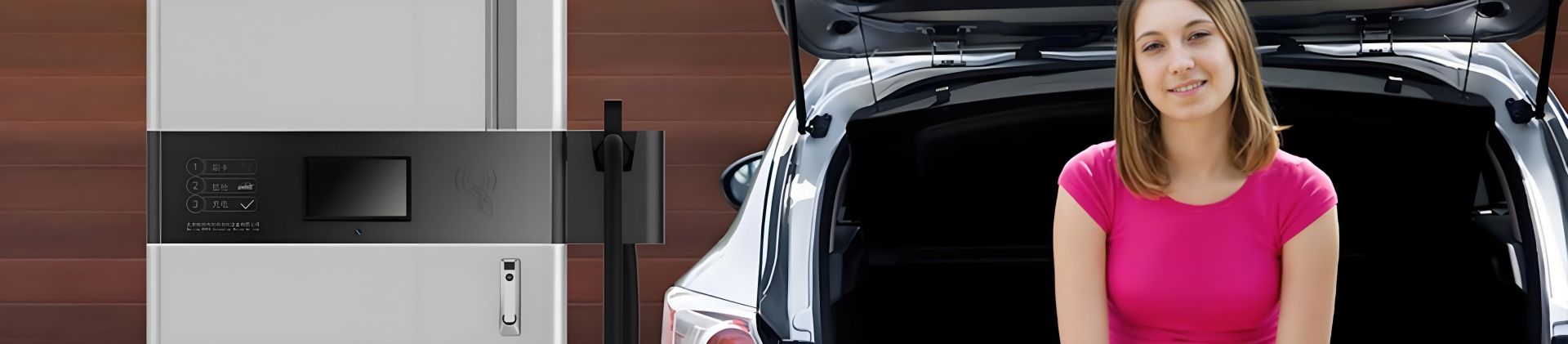

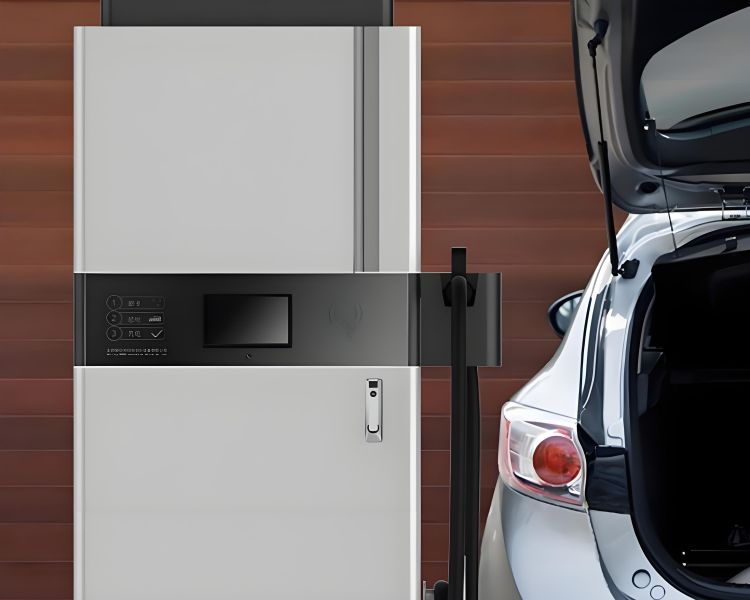

• Unified Horizontal User Interface: We completely redesigned the interaction zone. The card reader, touchscreen, and charger holster were arranged ergonomically on the same horizontal plane, allowing users to complete all actions seamlessly without bending or stretching.

3 Mechanical Structure Design

• Innovative Thermal Management: We moved away from traditional side-vent designs. Our team at LKK Design created a novel vertical thermal system with a bottom air intake and a top exhaust. This design leverages natural convection for efficient heat dissipation while maintaining a sealed, high-integrity enclosure that easily meets IP54 (or higher) standards.

• Integrated Charger Holster: We revolutionized charger storage by integrating a dedicated holster. This keeps the gun and cable neatly organized, preventing damage and tangling, thereby significantly enhancing the product's aesthetics and user experience.

4 Prototyping and Testing

A full-scale functional prototype was built for rigorous validation:

• Ergonomics Testing: Users performed simulated charging tasks to verify the comfort and logic of the operation flow.

• Lighting Effect Validation: The vertical light strip was engineered with a diffuse light source to ensure a soft, non-glaring glow at night.

• Thermal and IP Testing: The prototype underwent wind tunnel and water spray tests to confirm the cooling performance and environmental sealing.

LKK Design delivered more than a product; we provided a strategic tool for market success.

• Strong Brand Establishment: The distinctive power charging station design gave RHWCH a clear and professional market identity.

• Enhanced User Satisfaction: The human-centered design resulted in a superior user experience, building positive word-of-mouth from the outset.

• Accelerated Time-to-Market: Our design-for-manufacturing approach ensured a smooth transition to mass production, helping RHWCH capture a critical market advantage.

• Functional and Aesthetic Harmony: The project proved that advanced thermal management and user-centric features could be seamlessly integrated into a visually appealing product, creating a lasting competitive edge.

By partnering with LKK Design, RHWCH successfully transformed its vision into a market-ready, high-quality product, making a powerful and impactful first step in the competitive EV landscape.
