7-Step Hardware Product Development Process for Startups

Hardware Product Development Process for Startups

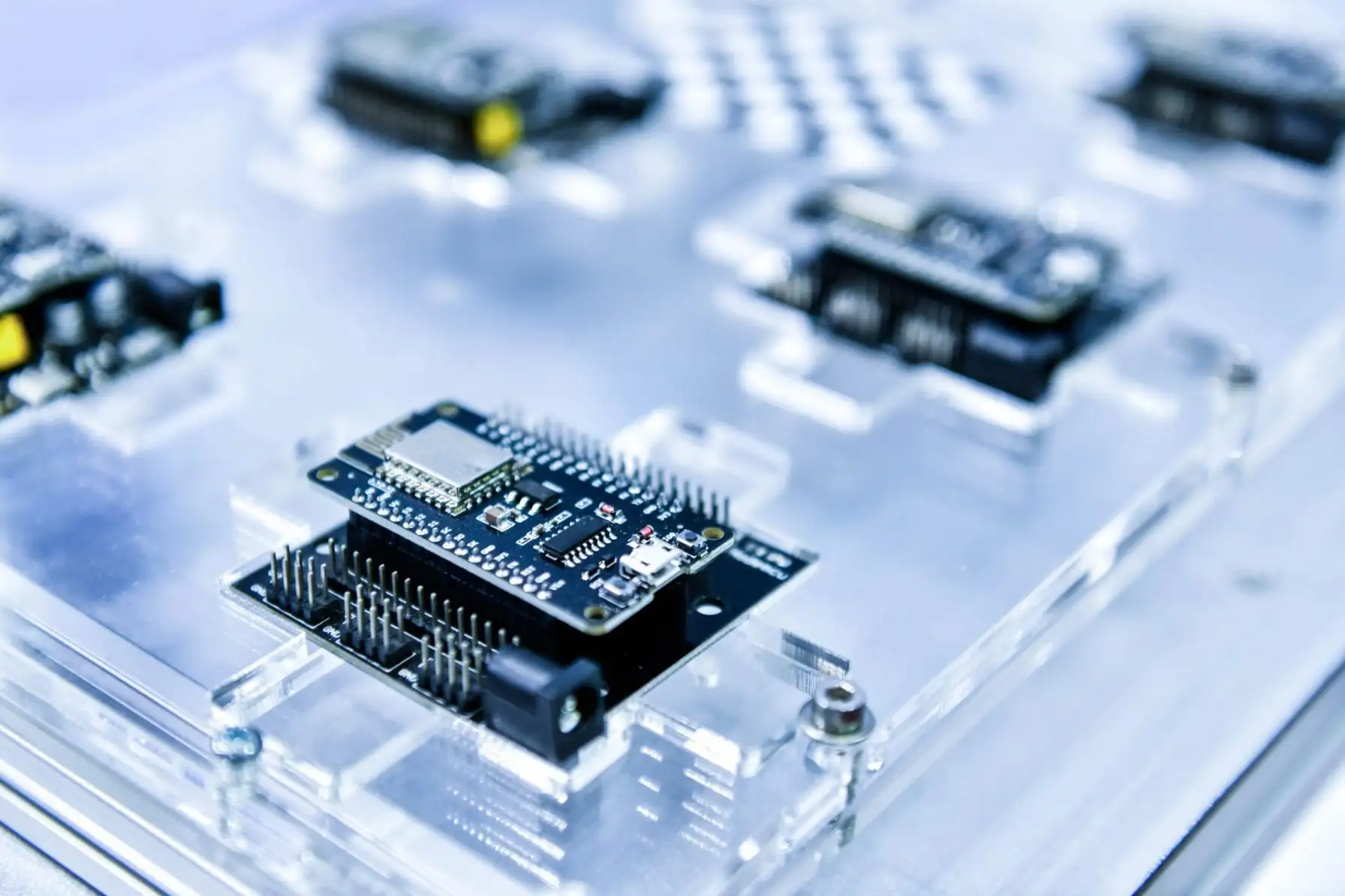

A working prototype does not prove that a product can be manufactured reliably. Development boards, temporary wiring, CNC housings, and hand-adjusted firmware may demonstrate functionality while hiding problems in cost, certification, assembly, or supply continuity.

The Hardware Product Development Process for Startups should therefore be managed as seven evidence-based steps. Each step should reduce a defined risk before the startup commits more capital.

STEP 1 — Replace the Product Idea with Measurable Requirements

A Product Requirements Document must describe how the product will operate, not simply what features it includes. Terms such as "long runtime," "compact," and "water-resistant" must be converted into measurable acceptance criteria.

The PRD should define:

•Operating and storage environments;

•Peak load, response time and accuracy;

•Battery runtime and charging conditions;

•Drop, vibration and ingress exposure;

•Target manufacturing cost and annual volume;

•Intended countries and regulatory classifications.

At LKK, product strategy is reviewed together with industrial design, mechanical engineering, electronics and manufacturing. This helps expose conflicts before detailed design—for example, when a thin enclosure cannot accommodate the required battery, heat path, antenna clearance and sealing structure.

STEP 2 — Convert the PRD into System-Level Budgets

The engineering principle behind the Hardware Product Development Process for Startups is allocation. Every subsystem consumes part of the available space, power, thermal, tolerance and cost budget.

Battery runtime can be estimated as:

Runtime ≈ Usable Battery Energy × Conversion Efficiency ÷ Average Power

However, engineers must also check peak current, cold-temperature capacity loss, battery aging and wireless transmission loads. Similarly:

Temperature Rise ≈ Power Loss × Thermal-Path Resistance

A higher-performance processor may therefore require a larger battery, heat spreader, additional enclosure volume or reduced duty cycle.

LKK applies GD&T, tolerance stack-up analysis, FEA and thermal/CFD simulation to connect these parameters. Instead of applying tight tolerances everywhere, the team identifies CTQs—dimensions or characteristics that directly affect function, sealing, alignment or safety.

STEP 3 — Select Each Development Route by the Risk It Removes

Within the Hardware Product Development Process for Startups, technical options should be compared by validation purpose rather than appearance.

DecisionFaster, lower-risk routeHigher-control routeMain selection factor
ElectronicsPre-certified module or SoMCustom PCB and RF designVolume, size, BOM and certification
PrototypeSLA/SLS/MJF or CNCVacuum casting or rapid toolingMaterial fidelity and test quantity
BatteryBuilt-in battery packReplaceable batterySealing, service and product life
Project modelIntegrated partnerMultiple specialistsInternal system-integration capacity

3D printing is suitable for form, ergonomics and assembly checks. CNC better represents rigid production materials and precision interfaces. Vacuum casting is useful for functional low-volume housings, while rapid tooling evaluates molded material, shrinkage and pilot assembly.

For suitable geometry and materials, LKK offers:

•CNC prototype tolerance around ±0.05 mm and Ra ≤0.8 μm;

•Vacuum casting batches of approximately 50–200 pieces using ABS-like, PC-like or Shore A 50–90 materials;

•Rapid tooling for approximately 50–500 pieces, with reported lead times of 3–7 days.

These are process capabilities, not automatic specifications for every component.

STEP 4 — Close Mechanical, Electronic and Software Interfaces Together

System matching is where many prototypes fail. An antenna that performs well on an open bench may lose range beside a battery or metal frame. A sealed enclosure may trap heat. A substituted component may change power consumption, firmware behavior, EMC or mechanical clearance.

Before design freeze, the project needs:

•An interface control document;

•Power, thermal, RF and tolerance budgets;

•A controlled BOM with lifecycle data and approved alternatives;

•DFM, DFA, DFT, DFQ and cost reviews;

•A verification matrix linking requirements to test methods.

LKK integrates ID, MD, ED, firmware, mobile applications, cloud systems, tooling and supply-chain engineering. The practical benefit is fewer uncontrolled handoffs between separate vendors.

STEP 5 — Engineer Assembly and Maintenance Before Tool Release

The Hardware Product Development Process for Startups must address how the product will be assembled, installed, updated, diagnosed and repaired.

Fasteners require torque limits. Gaskets need controlled compression. Adhesives need dispensing and curing instructions. Cables and connectors need routing, retention and inspection criteria. Connected products also require secure OTA updates, rollback behavior and diagnostic records.

For production transfer, LKK prepares controlled BOMs, Gerbers, STEP models, GD&T drawings, assembly SOPs, test procedures, FAI requirements and engineering change records.

Tooling capability must also match the product. LKK offers critical mold mating accuracy around ±0.005 mm, CMM inspection accuracy around ±0.002 mm and tooling configurations using S136, NAK80 or H13 steels. Its manufacturing network includes injection molding machines up to 1,500 tonnes and molds with up to 32 cavities. Actual tolerance, tool life and cavity count remain dependent on part size, resin and geometry.

STEP 6 — Use EVT, DVT and PVT to Control Investment

Each gate must produce different evidence:

GateRisk being closedRequired evidence
EVTArchitecture and interface riskFunctional prototypes, issue log, power and thermal results
DVTDesign and compliance riskReliability tests, pre-compliance results, finalized design
PVTManufacturing riskProduction tooling, FAI, yield, cycle time and traceability
MPOngoing process riskControl plan, supplier monitoring and change control

Compliance planning starts during architecture—not after tooling. Depending on the product and market, verification may include EU RED, EMC, RoHS or CRA requirements, FCC authorization, IEC 62368-1 safety, IEC 60529 ingress protection, UN 38.3 battery transport and Bluetooth qualification.

A pre-certified module or ISO-certified quality system does not automatically make the finished product compliant.

STEP 7 — Select a Partner by Evidence and Total Cost

Procurement closes the Hardware Product Development Process for Startups. The RFQ should separate NRE, prototypes, fixtures, certification support, tooling, MOQ, unit cost, expected yield, packaging, logistics, warranty exposure and engineering-change charges.

Startups must also confirm ownership of CAD data, source code, Gerbers, BOMs, test programs and molds. Payments should be tied to approved exit evidence rather than sample delivery alone.

With 20+ years of disclosed experience, an 800+ design and R&D team, 10,000+ project cases and 5,000+ supply-chain partners, LKK can support the Hardware Product Development Process for Startups from PRD development through pilot production. Startup teams can approach LKK with their current requirements and risk list to define the next technically justified development gate.

FAQs

Q1. Can LKK help with a startup that only has a core product idea?

Yes. LKK can help an early concept to develop a measurable PRD (Product Requirements Document) detailing the functions, performance, operating conditions, target cost and compliance requirements prior to detailed engineering.

Q2. What hardware product development and engineering stages does LKK cover?

LKK offers product strategy, industrial design, mechanical engineering, electronics, firmware, prototyping, tooling, and mass production. Projects can utilize Concept, EVT, DVT, PVT and MP gates (the gate system is a method of controlling product development and engineering with defined deliverable objectives)

Q3. What types of prototyping processes does LKK offer?

LKK offers 3D printing(SLA), SLS, MJF, CNC machining, vacuum casting, sheet metal and rapid tooling. The process is chosen based on the material, quantity and risk being validated.

Q4. What CNC prototype tolerance can LKK achieve?

LKK states CNC prototype tolerance of ± 0.5 mm and surface roughness of Ra ≤ 0.8 μm on suitable parts. Actual tolerance is dependent on geometry, material, feature size and inspection strategy.

Q5. Can LKK perform prototyping for low volume production prior to mass production?

Yes, LKK does vacuum casting for 50 to 200 pieces and rapid tooling for 50 to 500 pieces. These approaches can lend support to the functionality of the product, market phasing, trial assembly and market assessment prior to full commitment mass production tooling.
