Consumer Product Design for Injection Molding: From Smart Concepts to Production-Ready Products

• A consumer product can be deceptively simple on the surface, yet the engineering can be very complicated. A sleek casing, ergonomic handle, clean button arrangement, or small casing may entail dozens of design choices prior to the initial production component being cast.
• This is the reason why Consumer Product Design for Injection Molding should take into account the manufacturing at the very first stage. The design of consumer products is not merely a matter of appearance. It has to strike a balance between functionality, ergonomics, material behavior, tooling, tolerances, assembly, cost, and volume of production.
• Companies can transition between concept and dependable injection molding manufacturing with less expensive modifications when these factors are taken into account at an early stage.

Why Injection Molding Has an Impact on Product Design

Repeatable plastic components on a large scale are best done by injection molding. But the mold cannot just replicate any CAD model without engineering factors. Injection molding is the process that entails injection of molten polymer into a mold cavity at a controlled pressure and temperature. The material is then cooled and solidified, and the part is ejected. Design decisions influence:

•          Cycle time

•          Material consumption

•          Cooling behavior

•          Part quality

•          Tooling complexity

•          Dimensional stability

•          Production cost

This is why the design of injection molding products must start with the knowledge of the flow, cooling, shrinking, and behavior of the chosen plastic in the production process.

Start With Product Requirements

Product requirements that should be set by the engineering team include function, environment, anticipated loads, user interaction, appearance, and volume of production. In the case of consumer products, the requirements can be:

•          Target dimensions

•          Product weight

•          Impact resistance

•          Operating temperature

•          Surface finish

•          Color requirements

•          Assembly method

•          Expected production quantity

•          Target unit cost

These specifications direct consumer product engineering and aid in deciding which component to inject mold.

Draft Angles Make Ejection Easier

It is here that draft angle comes into play. Draft provides a small taper to the surfaces that are parallel to the direction of the mold opening, which assists the molded part to release without causing a lot of friction or damage. Inadequate draft may result in:

•          Drag marks

•          Scratches

•          Ejection problems

•          Sticking

•          Higher mold wear

The draft needed is dependent on the surface texture, material, depth, and the construction of the mould. Textured surfaces tend to need higher draft than smooth surfaces.

DFM is the Intersection of Design and Manufacturing

DFM, which is shortened to Design for Manufacturing, is among the most significant steps in the development of injection molding products. DFM of injection molding looks at the consistency and economy of the design to be molded. DFM review may assess:

•          Parting line location

•          Gate location

•          Draft

•          Wall thickness

•          Ribs and bosses

•          Undercuts

•          Ejection

•          Material selection

•          Mold complexity

•          Expected cycle time

LKK outlines its manufacturing process as the combination of DFM early, then engineering optimization, tooling and process validation, pilot-run verification, and production release. This method assists in converting a digital design into a production-ready design instead of finding out about manufacturing issues after the mold has been created.

Think About the Mold Before Building it

The injection mold tooling may be a large part of the initial investment, particularly when dealing with high-volume consumer goods. The injection mold design should consider:

•          Geometry of core and cavity.

•          Parting line

•          Gate location

•          Runner system

•          Cooling channels

•          Ejection system

•          Mold materials

•          Number of cavities

A relatively simple mold might be used on a simple part, but a complex consumer product might need slides, lifters, inserts, or other mechanisms. LKK incorporates tooling design, fabrication, validation, and transition of DFM to mold trials into its manufacturing process. This combined solution would help minimize the handoff issues between different engineering and tooling vendors.

Design is Altered By the Material Choice

It is not just a question of picking the lowest-cost plastic as a resin. The choice of material must take into consideration:

•          Strength

•          Impact resistance

•          Heat resistance

•          Chemical exposure

•          UV exposure

•          Surface appearance

•          Shrinkage

•          Flow characteristics

•          Regulatory requirements

ABS, polypropylene, polycarbonate, nylon, and PC-ABS blends are common consumer-product materials, but the most suitable one varies with the use. The material chosen may also affect wall thickness, draft needs, surface texture, tolerances, and anticipated tool behavior.

Before Production Tooling Prototyping

Injection molding prototyping is an effective method of testing a design before full production. Methods that can be used to make early prototypes include:

•          3D printing

•          CNC machining

•          Vacuum casting

•          Rapid injection molding

•          Prototype tooling

A prototype can expose problems that are hard to observe on a screen, such as poor grip, component interference, weak mounting, hard to assemble, or lack of clearances. This phase aids in optimizing product design before the costly production equipment.

LKK's Integrated Manufacturing Approach

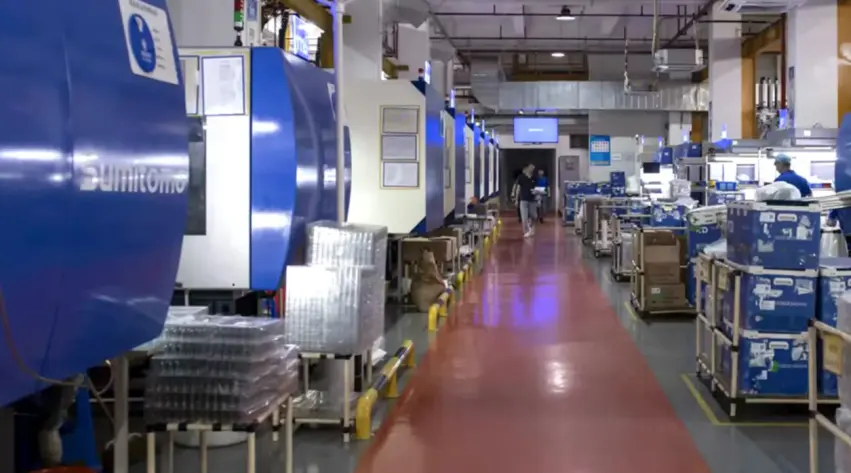

• The LKK contract manufacturing service links design, DFM, tooling, injection molding, CNC machining, assembly, testing, and other manufacturing services in a workflow. Its published injection molding capacities consist of machines of up to 1,500-ton clamping force, molds of up to 32 cavities, and claimed dimensional tolerances of ±0.05 mm for applicable production work.
• Other larger manufacturing capabilities that the company enumerates include CNC machining, assembly, SMT, die casting, sheet metal, surface treatment, packaging, and laboratory testing.
• In the case of consumer products, this expanded capability can be applicable when a finished product is a mixture of molded plastic components and machined components, electronics, metal components, surface finishes, and final assembly.

Conclusion

A beautiful product can only be valuable when it can be produced in large quantities, assembled in a cost-effective manner, and delivered at a cost that is commercially viable. That is what Consumer Product Design For Injection Molding is all about. LKK integrates design-to-production solutions, integrating DFM, tooling development, injection molding, machining, assembly, testing, and supply-chain coordination into a larger manufacturing process.
