Highway Toll Collection System
Improving China’s Transportation Infrastructure
Innovation Insights
Project Background

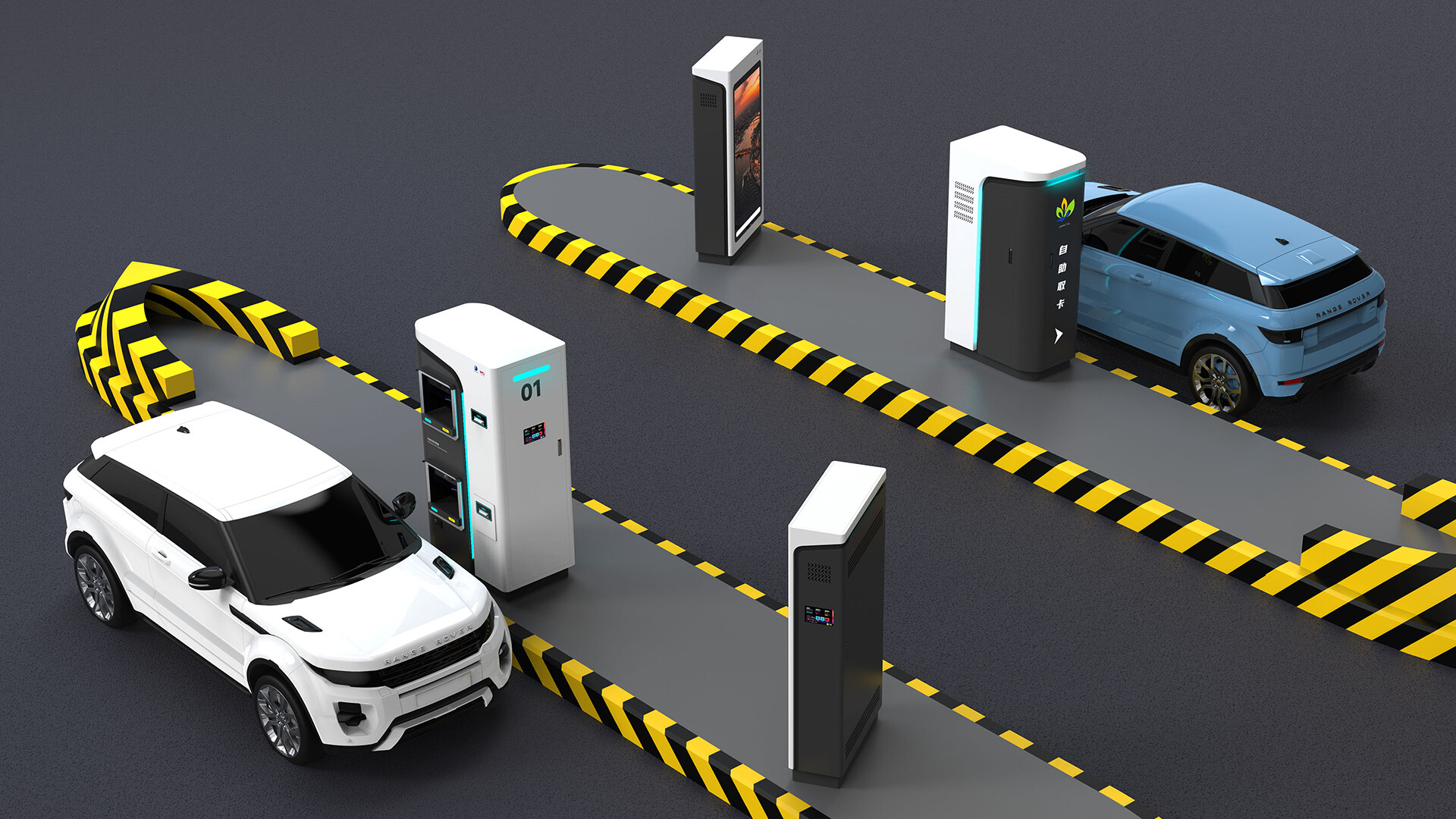

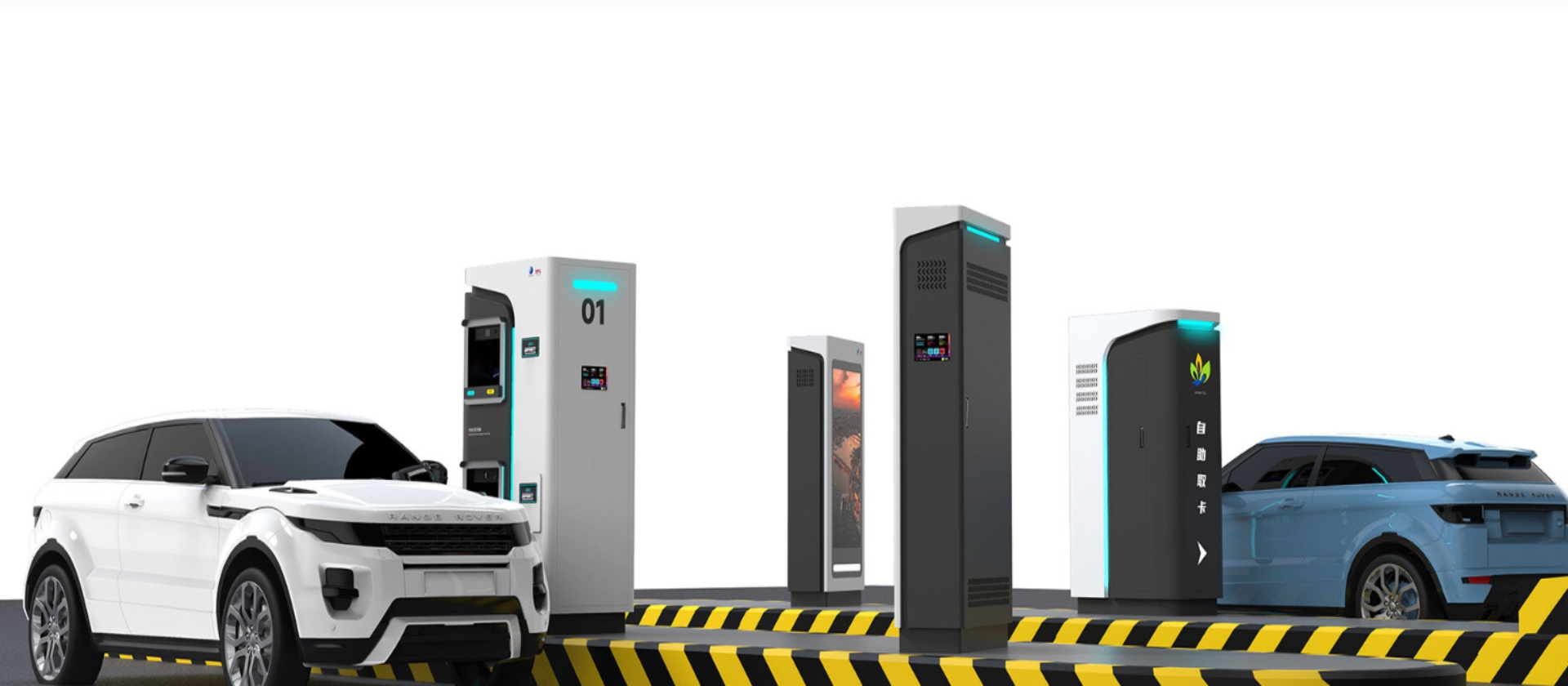

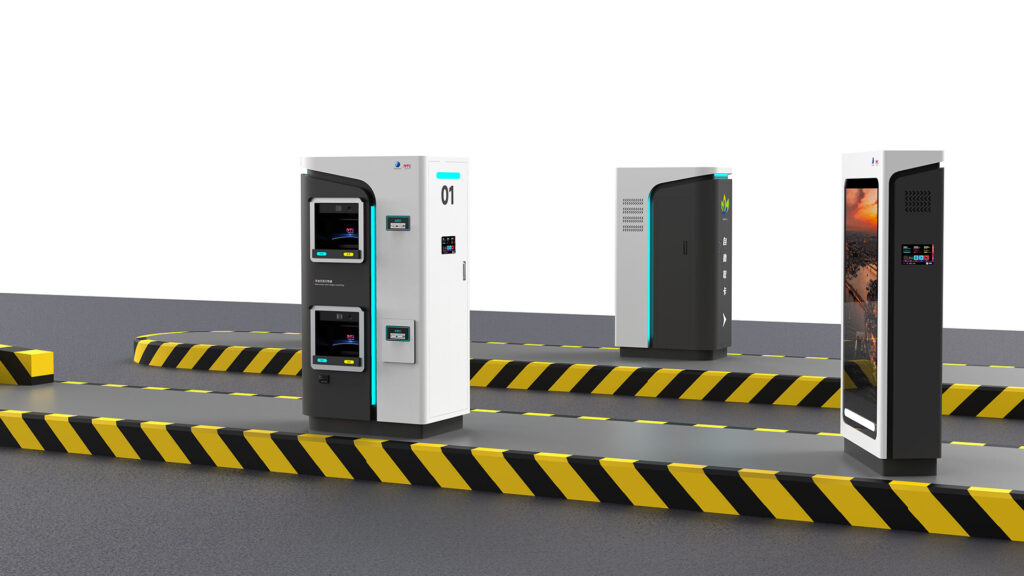

The highway toll collection system consists of four products: a card dispenser, a payment terminal, and two cost-effective large-screen display units.
The system is mainly used at highway entrance and exit toll stations, replacing traditional manually operated toll booths for card collection and payment with intelligent equipment.
It can operate reliably in harsh outdoor environments while enabling convenient digital management of the entire highway toll network.
The equipment also provides a high card-handling capacity, reducing the frequency of card replacement by staff and saving labor resources.
An automatic disinfection function is integrated inside the machine to reduce the risk of disease transmission caused by repeated card exchange.
Innovation Value
The highway toll collection system replaces the traditional manual operating model, reducing labor requirements and limiting the impact of severe weather on toll collection efficiency.
It also improves vehicle throughput and helps reduce traffic congestion at highway entrances and exits.
The system is designed to integrate into China’s existing highway toll station network and contribute to the improvement of the country’s transportation infrastructure.
Design Strategy
Innovation Concept
The purpose of the highway toll collection system is to create an intelligent toll island.
By using only four types of equipment, the system integrates and replaces numerous conventional devices.
This reduces the number of machines installed on the toll island while providing more complete functions.
The system operates intelligently and does not require continuous staff supervision.
Exterior Innovation
The products feature a simple and professional exterior design.
The card dispenser and payment terminal adopt a left-and-right wrapping form, creating a clear sense of visual direction.
Large curved surfaces transition smoothly from the sides to the front of the products.
The corner-free design reflects human-centered consideration, reduces the psychological distance between users and the equipment, and creates a more approachable appearance.
Lighting effects and contrasting materials further strengthen the professional character of the products.
💡 Solution
1. Convenient Card Collection and Payment
The design of both the card dispenser and payment terminal fully considers the operating needs of drivers, passengers, and toll station staff.

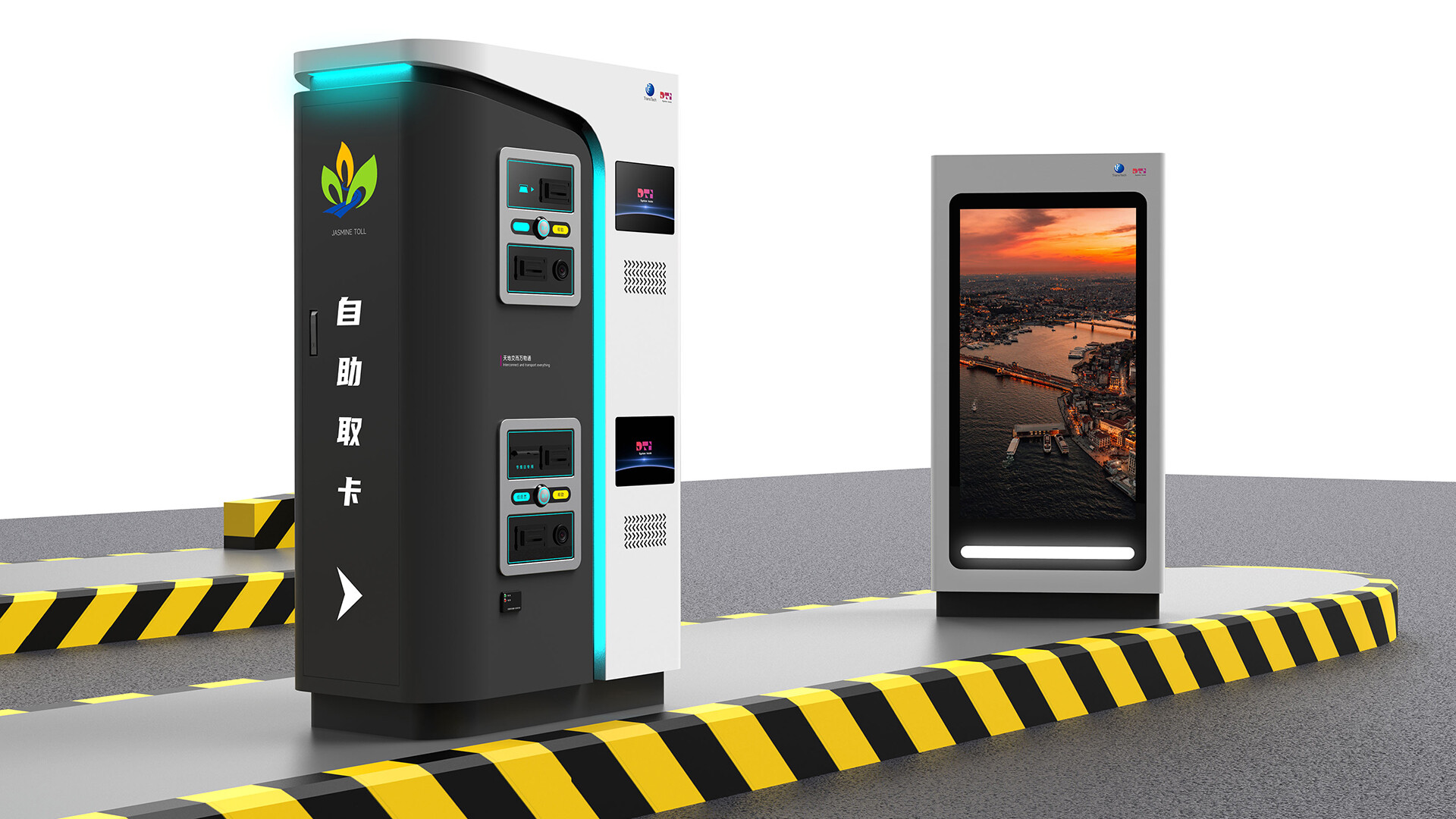

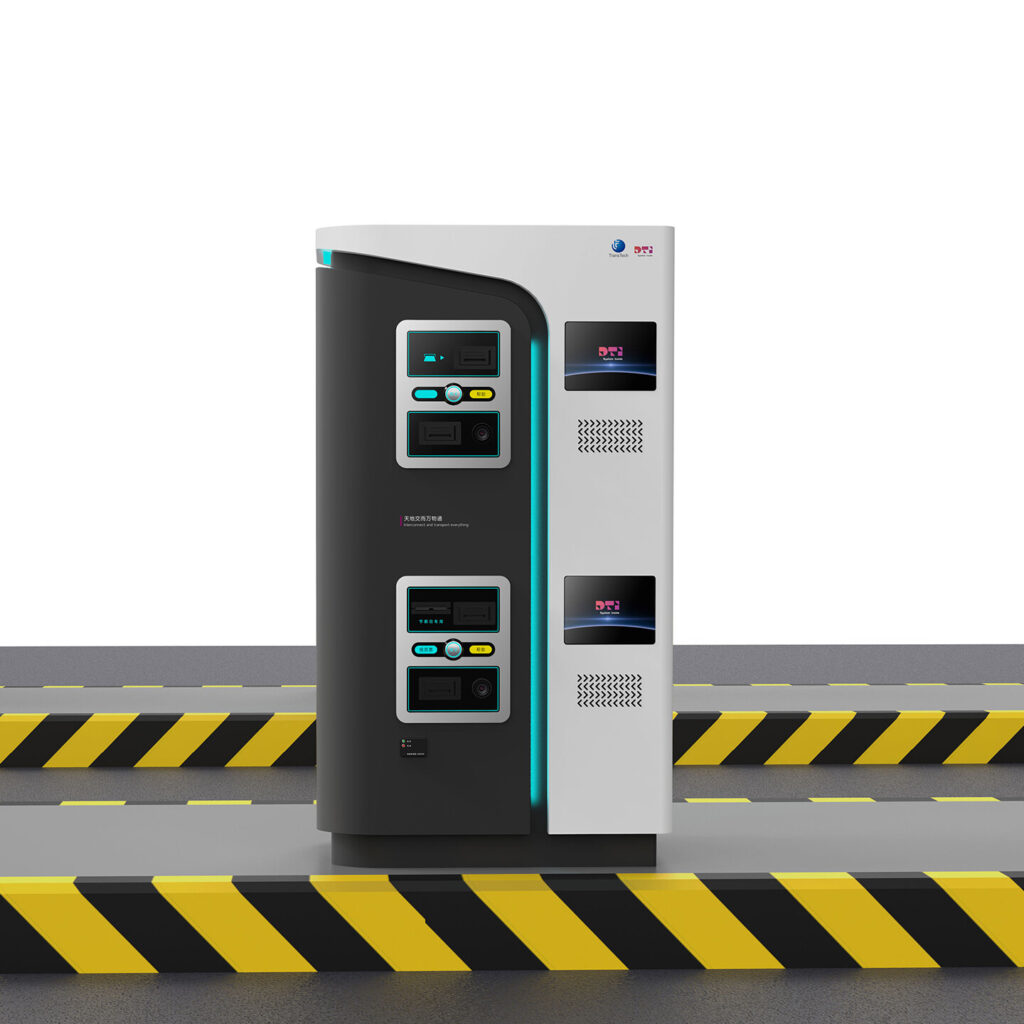

The card dispenser control panel allows users to complete card collection with a single action.
Its card collection panel can automatically extend, making it easier for drivers and passengers to reach and retrieve the card.

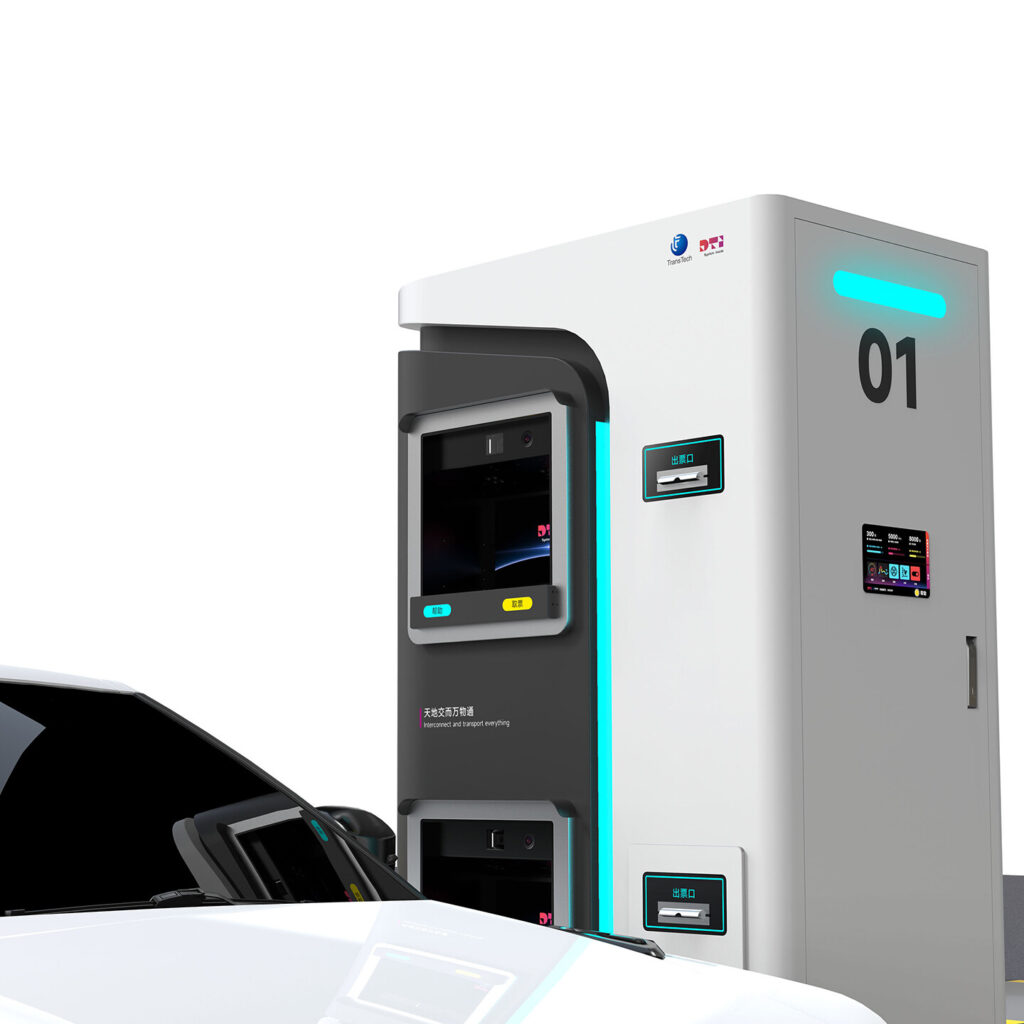

The payment terminal adopts a large, open card-delivery window that eliminates the need for complicated alignment required by traditional systems.
It also supports multiple payment methods.
The convenient operating process significantly improves overall vehicle throughput.
2. Intelligent Integrated Toll Management
The highway toll collection system transforms the traditional manually operated toll island into an intelligent and integrated management system.
It represents both an equipment upgrade and a future development direction for the industry.
The system introduces a large card-delivery window, an automatic disinfection device, and a retractable card mechanism for the first time in this type of equipment.
