ZIB Children's Educational Robot
An AI learning-type children's robot with sales exceeding 10 million units.
Client:
ABB
Category:
EV Charging Solutions
What We Did:
ID / Mechanical/Prototyping
Client
ZIB
Design Objectives
Child-friendly interaction design
Emotional connection experience
Key Technologies
Voice-first interaction system
MEMS microphone array (far-field)
LED dot matrix feedback system
ARM-based AI processing platform
Industrial Design
Futuristic soft-robot form
Aircraft-inspired streamlined body
Tilted head interaction posture
Hidden display aesthetic system
Mechanical Design
3D compact space integration
Reinforced handle structure
Spherical internal layout optimization
Drop-resistant architecture
Compliance & Testing
EU CE / EN71 certification
FCC & ASTM F963 compliance
Heavy metal safety testing
Thermal & battery safety validation
🤝 Client & Project Background
Amid the global smart product wave, the children's segment witnessed rapid growth yet suffered from product homogeneity. Our client ZIB Technology identified the core need of modern parents: a solution that provides quality companionship and early education while compensating for their limited time. ZIB aimed to develop an AI companion robot priced under ¥1,000 that would surpass existing products in design, experience, and quality - creating a bridge between children and knowledge through interactive features and remote parental communication.
📝 Requirements and Objectives
- Design Breakthrough: Create a distinctive product identity blending futuristic tech with approachable appeal, breaking from conventional humanoid robotics
- Safety Assurance: Implement highest safety standards across materials and construction for child-friendly durability
- Emotional Connection: Enable multi-modal interactions through visual, tactile, and voice interfaces to build genuine bonds
- Cost-Effective Manufacturing: Balance innovative aesthetics with complex internal hardware integration within strict budget constraints
💡 Solution and Design Process
LKK Design's integrated "design + R&D supply chain" approach guided the complete development from concept to mass production.
Design Research
Our user research revealed two key insights: children respond best to personified forms with playful characteristics, while parents express strong concerns about large screens causing addiction and vision damage in competing products. This inspired our core concept: a futuristic companion that eliminates screens to protect eyesight while stimulating imagination.
Industrial Design

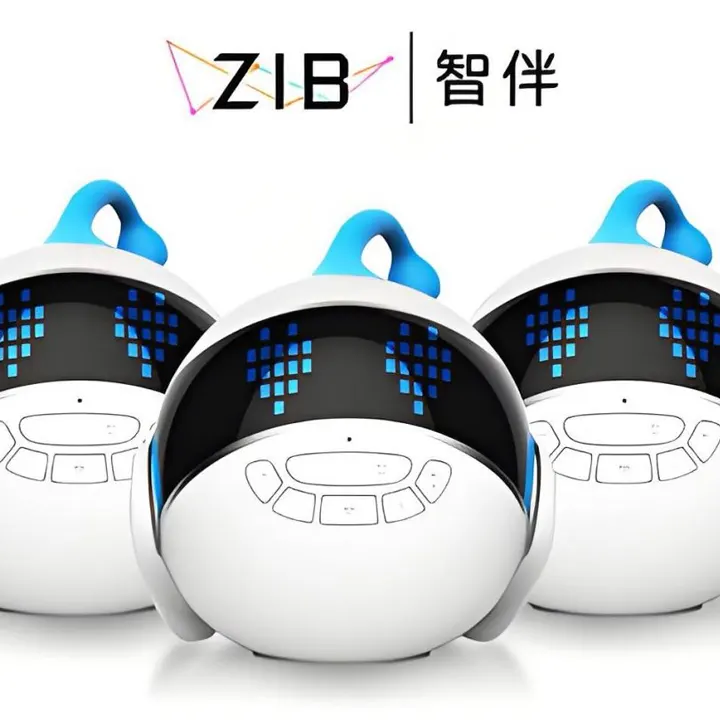

- Futuristic Form: Inspired by aircraft from "Oblivion," the streamlined body features a distinctive tilted head creating playful "eye contact" during interactions
- Screen-Free Innovation: Addressing parental concerns, we replaced traditional displays with a low-brightness, flicker-free LED dot matrix behind the glossy black "sunglasses" panel, displaying simple emoticons and status indicators while eliminating screen-related risks

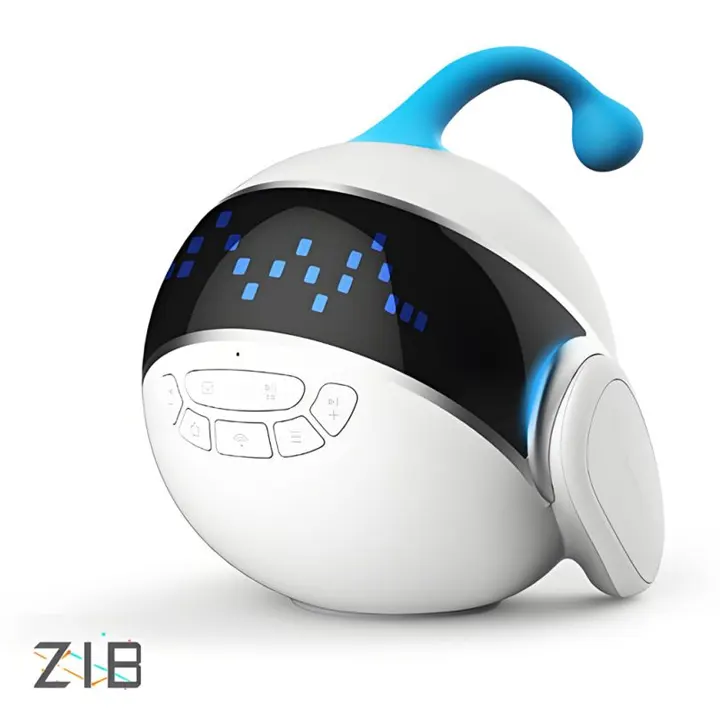

- Dual-Function Antenna: The food-grade silicone top antenna incorporates breathing LED lights for emotional connection. Crucially, it also functions as a child-friendly carry handle - the soft yet sturdy grip enables small children to securely lift the spherical body, preventing drops and potential injury
Mechanical Structure Design
- Compact Integration: Facing spatial constraints of the spherical form, our engineers performed 3D modeling and simulation to optimize three-dimensional component stacking, custom-designing irregular parts and utilizing every millimeter between dome and base
- Child-Safety Engineering:
- The carry-handle antenna incorporates reinforced internal skeleton validated through finite element analysis (FEA) simulating extreme use scenarios
- Impact-resistant architecture with buffer zones around critical components and reinforced seams ensures survival from 1-meter drops
Electronic and Interaction Design
- Voice-First System: An ARM-based main processor powers complex tasks, while high-SNR MEMS microphone arrays with custom acoustic design and noise cancellation enable 360° far-field wake-up and accurate recognition in noisy environments
- Screen-Free Output: Content delivery relies entirely on audio and light feedback. A professional audio decoder chip drives high-quality speakers, while the LED dot matrix and breathing lights create a complete visual language expressing states like "listening," "thinking," or "happy" without screens
- Power Safety: Efficient power management circuits extend battery life, with strict charge/discharge protection and temperature monitoring ensuring electrical safety
Prototyping and Testing
- Functional Validation: CNC and 3D-printed functional prototypes verified internal layout, structural integrity, and ergonomics - particularly handle grip comfort, voice recognition sensitivity, and light effect softness
- Compliance Testing: Comprehensive testing against EU CE (EN71), US FCC, and ASTM F963standards covered heavy metal content, small parts safety, edge sharpness, battery safety, and thermal management - ensuring global market compliance
Mold Development and Mass Production
- Manufacturing Optimization: DFM/DFA analysis addressed complex processes like two-shot injection molding and silicone overmolding
- Quality Assurance: Precision molds with optimized runner/cooling systems eliminated sink marks. Statistical Process Control (SPC) maintained consistency across mass production, ensuring million-unit output matched design specifications
💎 Project Value
ZIB Robot demonstrates how design drives commercial success:
- Market Success: After its 2018 Silicon Valley launch, it became the category sales leader with global sales exceeding 10 million units, establishing ZIB's industry leadership
- User Value: The robot addresses childhood loneliness through curriculum-synchronized content, multilingual translation, and parent-child chat. The screen-free approach and safety-carry handle directly resolve parental concerns about vision health and physical safety
- Industry Benchmark: This project exemplifies LKK's integrated service model, proving how front-loading compliance requirements and combining engineering with supply chain capabilities can overcome manufacturing challenges from concept to mass production
