HUAZHI Commercial and Industrial Energy Storage Cabinet Upgrade
Integrated Minimalist Design
Innovation Insights
Market Demand
Commercial and industrial users face high electricity consumption, elevated energy costs, and significant price fluctuations.
In 2022, China’s secondary and tertiary industries consumed 7,186 TWh of electricity, accounting for 83.2% of the country’s total electricity consumption. Electricity prices for these sectors were relatively high and highly variable, with peak-to-valley price ratios of 1.37 and 1.65 respectively.
As the proportion of renewable energy continues to increase, demand for greater grid reliability is also rising rapidly.
With China establishing a more market-oriented electricity system, commercial and industrial energy storage is playing an increasingly important role in improving energy efficiency, balancing power demand, and reducing operating costs.
New Product Development
Huazhi Energy has remained focused on the challenges and requirements of energy storage in commercial and industrial applications.
The company uses core technologies and forward-looking concepts to drive innovation in products, energy solutions, and service models.
In 2023, Huazhi Energy partnered with LKK Design to upgrade an integrated liquid-cooled energy storage product specifically developed for commercial and industrial environments.
Design Strategy
Functional Area Organization

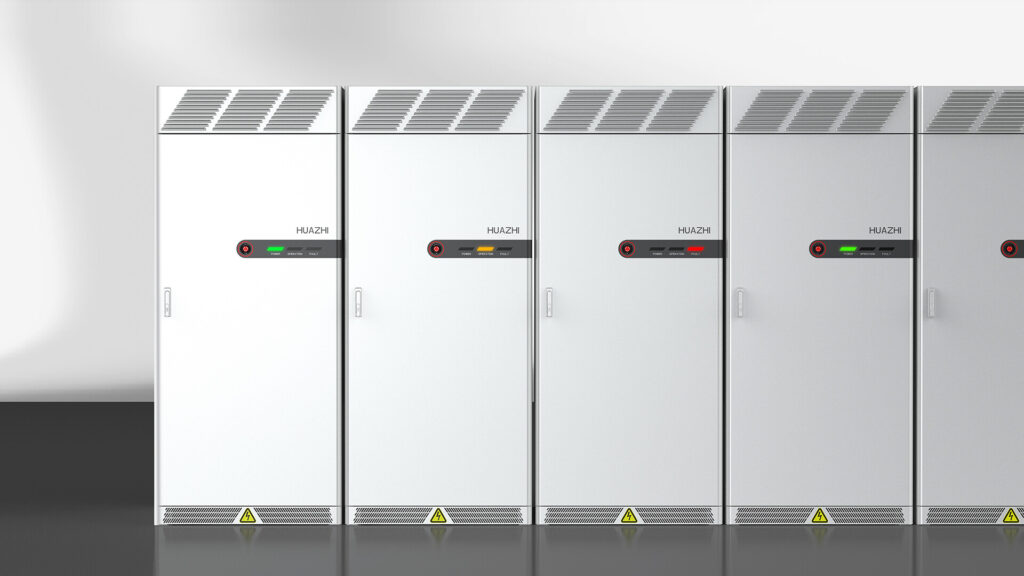

The front of the cabinet features a simple semi-racetrack-shaped graphic extending vertically across the surface.
Functional components, including the emergency stop button and status indicator lights, are integrated into this area, creating a clear and organized division of functions.

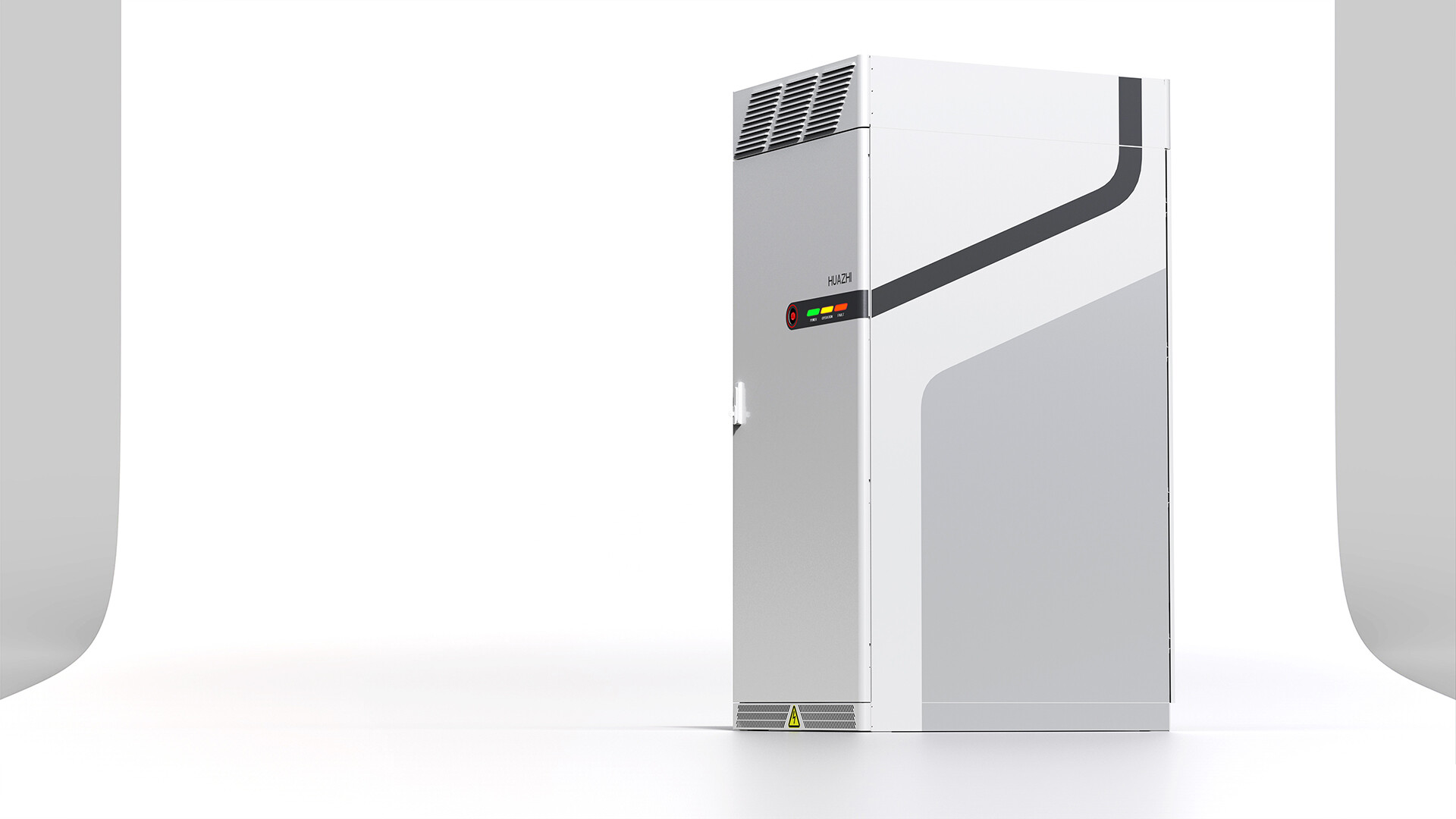

The front design language continues toward the side panels, forming a visually connected and continuous three-dimensional structure.
This integrated treatment reduces visual complexity and gives the cabinet a more unified and minimalist appearance.
Application of PI Elements
The product appearance fully incorporates Huazhi Energy’s product identity elements.

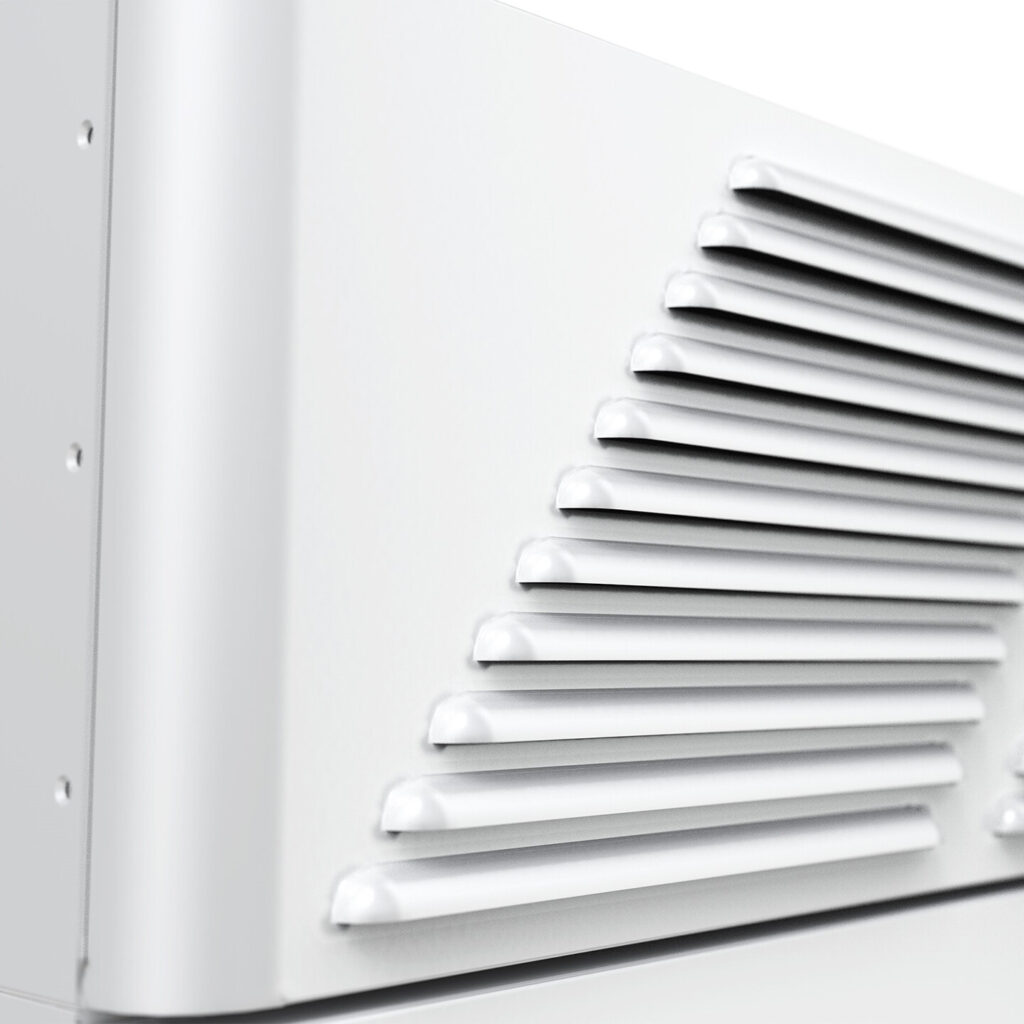

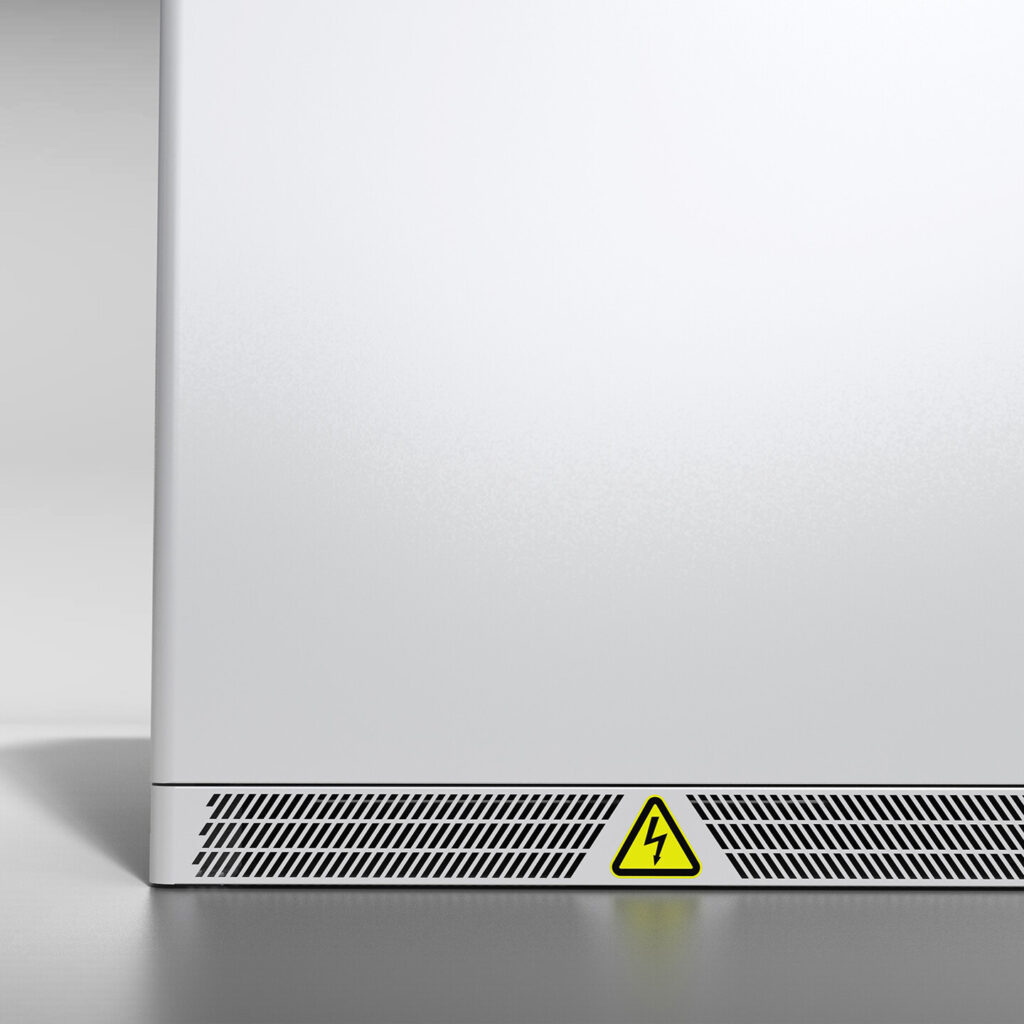

The upper and lower ventilation openings, together with the indicator lights, adopt three inclined geometric forms derived from the company’s visual identity.
These three forms represent electrical power and energy, while also communicating efficient product operation.
They also express the company’s concept that “three gives rise to all things,” integrating the brand philosophy into the product’s exterior design.
💡 Solution
1. Improved Economic Performance
The cabinet combines an integrated minimalist structure, independent cluster-level control and management, a top-mounted liquid-cooling unit, and optimized system operating strategies.
These features allow the product to achieve an industry-leading capacity per unit of installation area, reaching up to 191 kWh per square meter.
The required footprint can be reduced to as little as 1.3 square meters.
The overall system efficiency exceeds 92.5%, while comprehensive efficiency improvements can reach up to 15%.
This combination of high energy density, reduced installation space, and improved operational efficiency provides greater economic value for commercial and industrial users.
2. Greater Flexibility
The product uses a modular and standardized small-unit design.

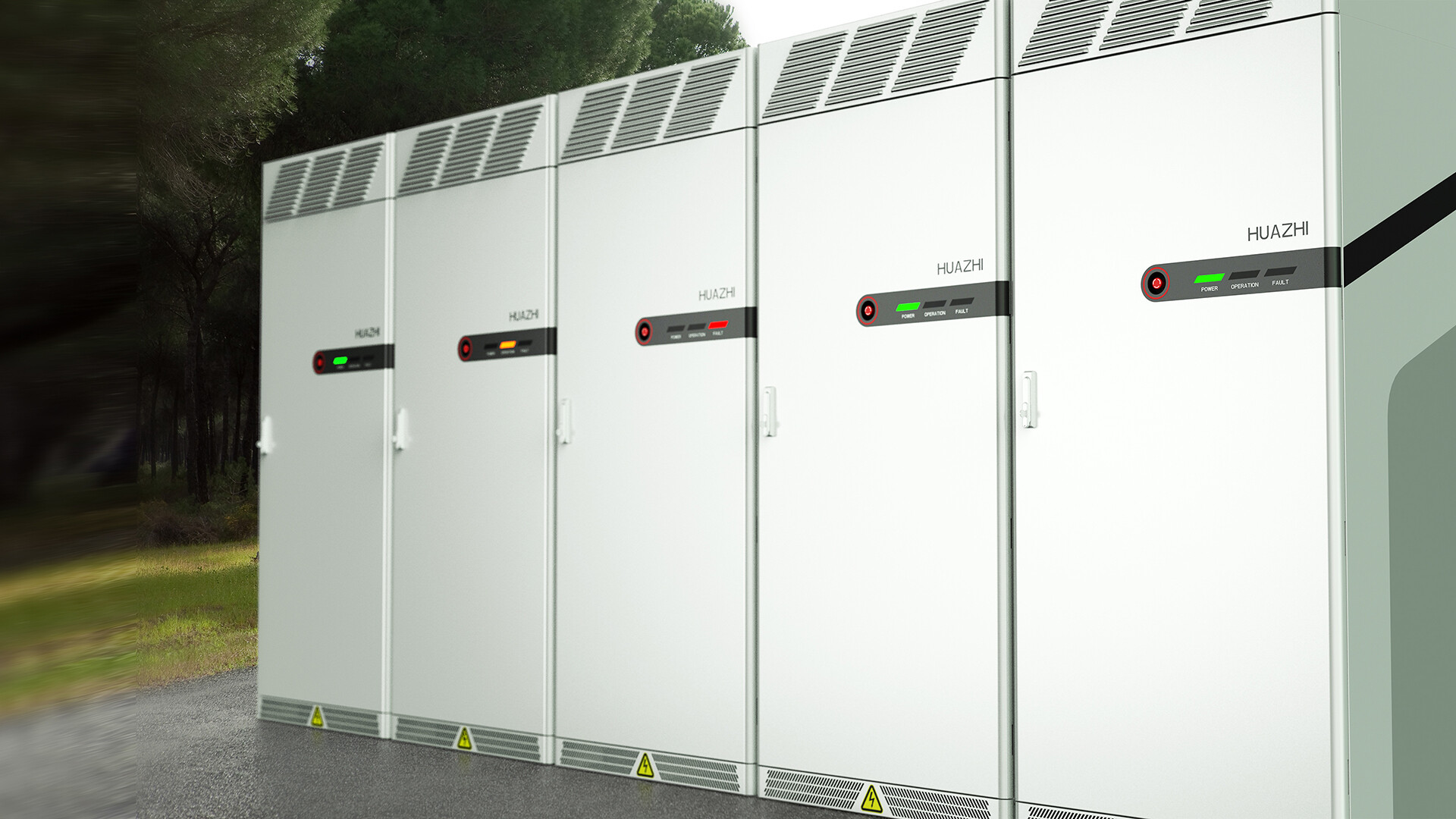

This structure supports installation directly against a wall, flexible capacity expansion, and simplified operation and maintenance.
Users can configure or expand the system according to different power requirements, site conditions, and application scenarios.
The modular platform also supports a wider range of innovative energy storage projects and customized commercial applications.
3. Enhanced Safety
The system uses a patented cell-level AI algorithm combined with millisecond-level status monitoring to identify potential risks rapidly and accurately.
An integrated PCS and BMS design improves coordination between power conversion and battery management.
Precise PACK-level fire protection provides additional protection for individual battery modules.
Together, these technologies address the safety challenges associated with continuous, long-duration operation and provide more reliable protection for commercial and industrial energy storage applications.
