Pinshile Vertical Hair Dryer

Pinshile, an innovative personal care brand, identified a unique market opportunity within the saturated hair appliance industry. While competitors focused on more powerful or compact handheld dryers, Pinshile envisioned a product for a different moment: a hands-free, vertical dryerdesigned for convenience and relaxation at home. Their goal was not to replace the primary handheld dryer but to become the complementary "second dryer" for modern households, aligning with growing trends of in-home wellness and efficient self-care. LKK partnered with Pinshile to transform this strategic vision into a technically sophisticated, manufacturable, and desirable product that would define a new category.

The development of a category-defining product presented distinct multi-faceted challenges:

• Balancing High-Speed Performance with User Comfort: Integrating a 100,000 RPM motor for fast drying risked creating an uncomfortably harsh airflow and excessive noise, contrary to the promised relaxing experience.

• Our Solution: We engineered a dual-outlet airflow system to disperse and soften the high-speed wind. Concurrently, we implemented a suspended motor mount and a specially tuned low-resistance air duct to dampen vibrations and reduce aerodynamic noise, achieving a quiet 65 dB operation.

• Integrating Authentic Hair Care into the Drying Process: Moving beyond basic negative ions to provide a tangible "hair care" benefit required a novel technical approach.

• Our Solution: We developed a proprietary "Dual Care System" combining 200 million high-density negative ions with a user-replaceable peptide essence cartridge. This cartridge, heated and vaporized by the airflow, actively deposits nourishing ingredients onto the hair. Its innovative press-to-eject mechanism allows for easy replacement or removal based on user preference.

• Ensuring Absolute Safety for Unattended and Family Use: A stationary dryer demanded fail-safe features to prevent hair entanglement and ensure safe operation for users of all ages.

• Our Solution: A two-stage safety barrier was designed: first, an ultra-fine intake grill (0.3mm apertures) physically blocks hair; second, an internal vortex chamber disrupts airflow to prevent any ingress. We also created a dedicated Child Mode with a lower, constant temperature, governed by a real-time NTC sensor monitoring at 200 times per second.

• Creating Intuitive Interaction and Home Integration: The product needed to be effortless to control and aesthetically belong in a contemporary living space.

• Our Solution: We designed a minimalist wireless magnetic remote for convenient adjustment and storage. An RGB LED ambiance light ring added a functional and decorative element. The exterior was crafted with a premium matte metallic finish in a sophisticated neutral color to complement modern home decor.

Our development followed a structured, phase-gated process, ensuring each aspect of the product was meticulously validated.

1. Product Design Strategy
The strategy centered on the "Second Dryer" paradigm, focusing on scenario-driven design for the home environment. We prioritized complementary functionality (offering what handheld dryers cannot) and a holistic experience upgrade, shifting hair drying from a chore to a moment of effortless personal care.

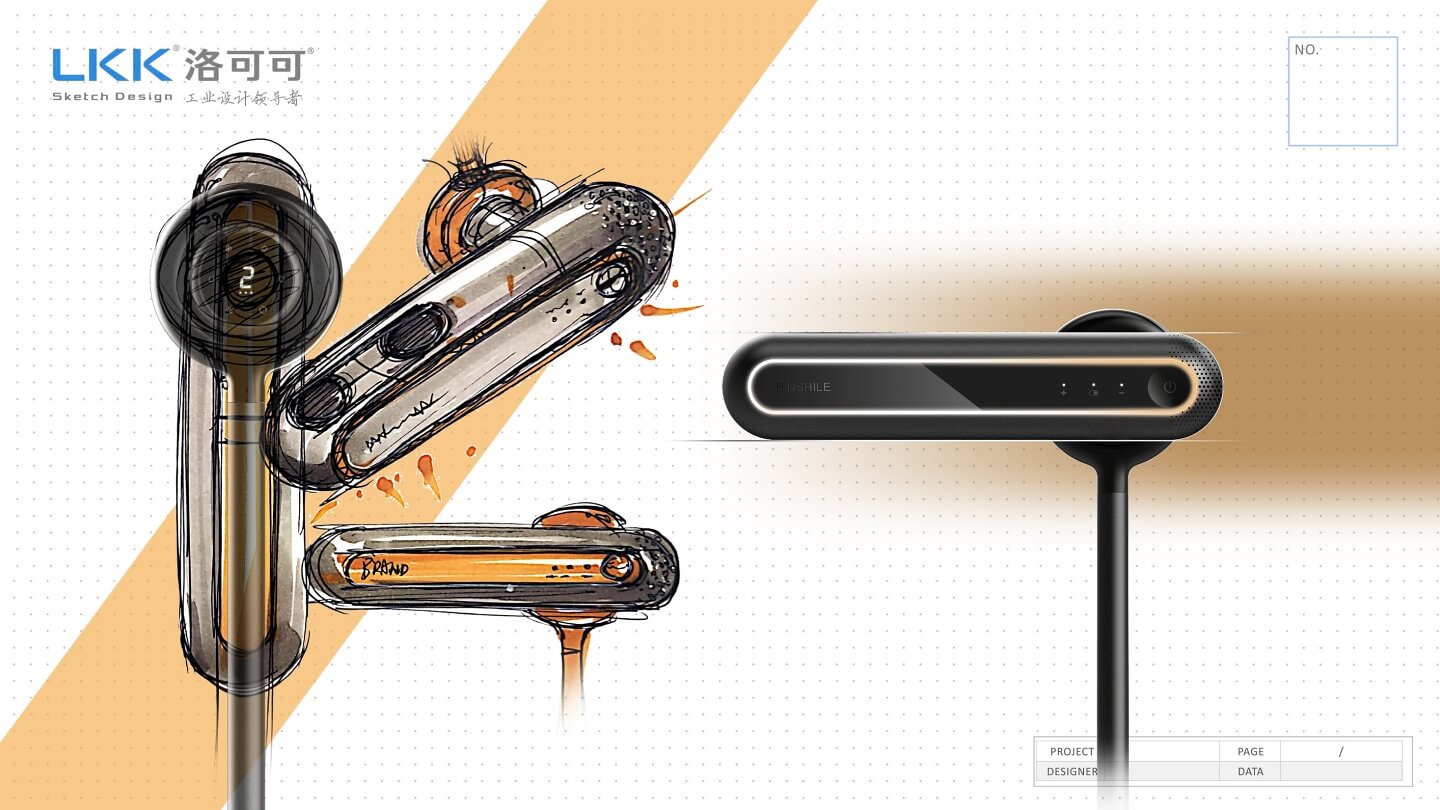

2. Industrial Design

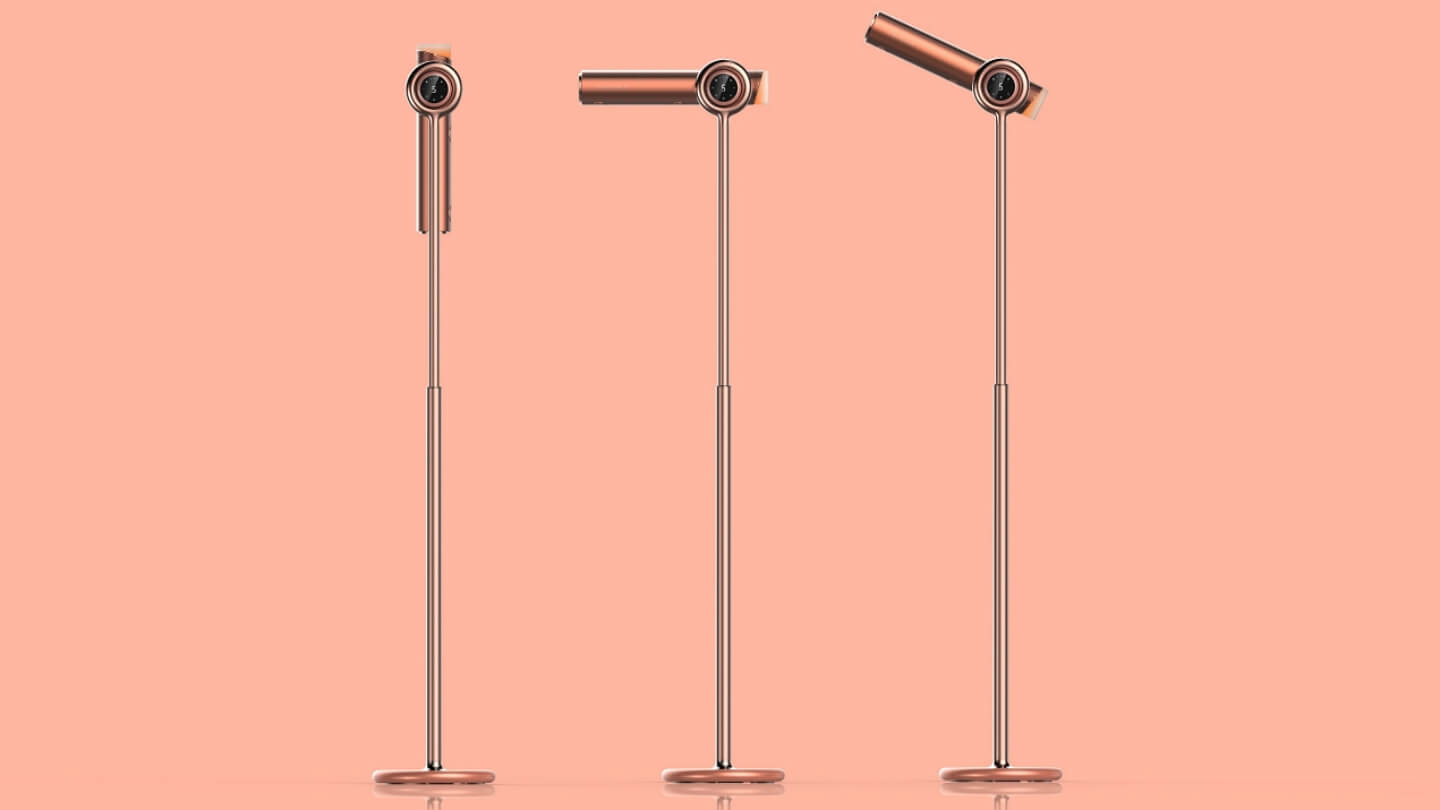

The ID process harmonized form, ergonomics, and aesthetics. We created a stable, sculptural vertical form with adjustable height and tilt mechanisms to accommodate different user heights and preferred postures. The CMF strategy selected a scratch-resistant, soft-touch polymer and anodized aluminum accents to convey premium quality and blend seamlessly into bathroom interiors.

3. Mechanical Design
Mechanical engineering focused on performance, reliability, and safety.

• We computationally optimized the dual-path air duct geometry for maximum flow efficiency and minimal acoustic turbulence.

• The motor's kinetic isolation system used custom silicone dampeners to decouple vibration from the chassis.

• The protective intake grill and internal baffles were precision-engineered using advanced mold flow analysis to ensure structural integrity and safety compliance.

4. Electronic Design

• Hardware Architecture: Developed a custom PCB integrating a high-performance 32-bit MCU, a robust BLDC motor driver, high-sensitivity NTC thermistors, and efficient switch-mode power supply (SMPS) circuitry.

• Firmware Development: Programmed real-time control algorithms for dynamic motor speed modulation and closed-loop PID temperature control, ensuring consistent thermal performance across all settings.

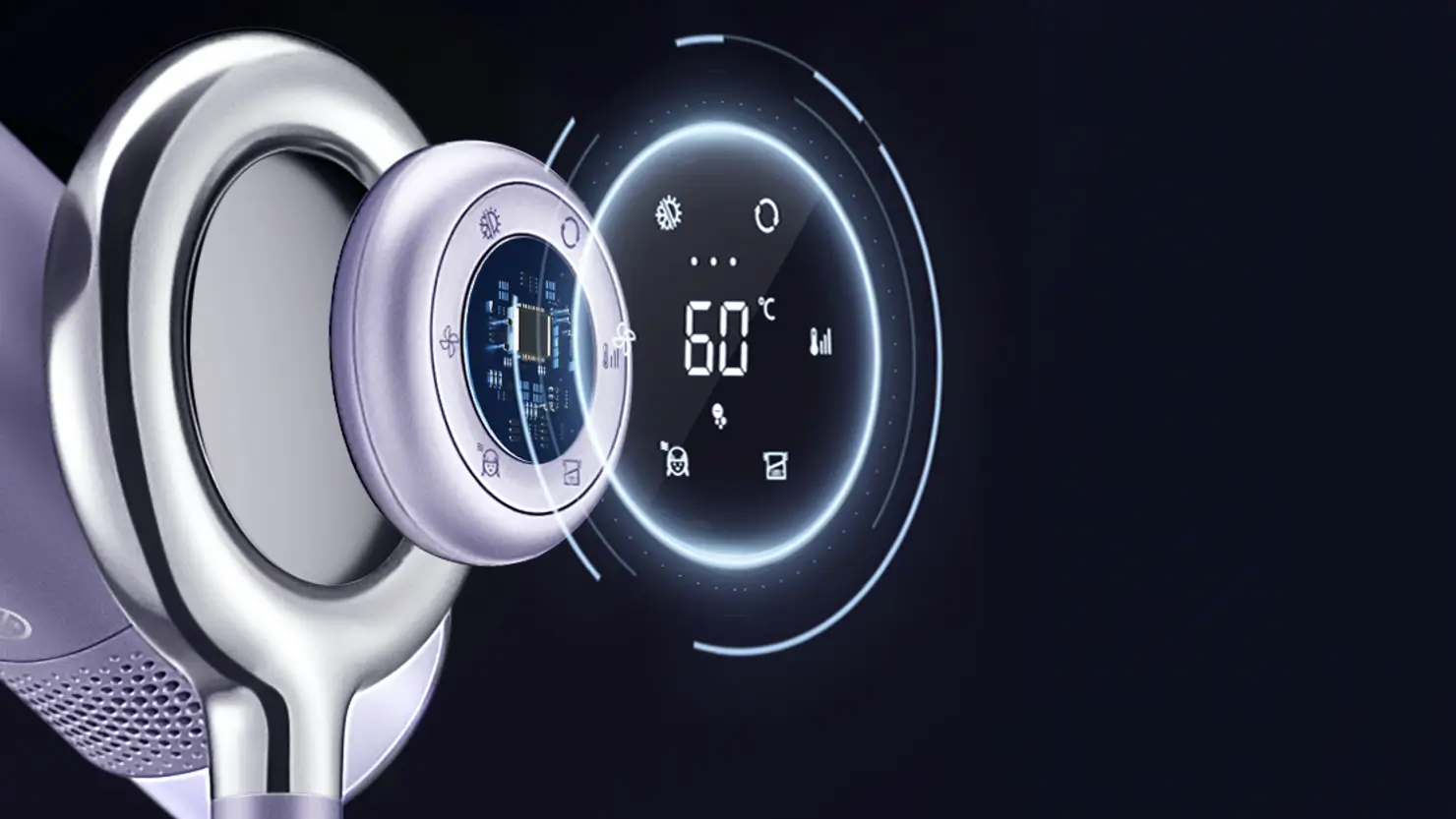

• Software & Controls: Engineered a reliable, low-power 2.4GHz RF protocol for the wireless remote and developed the state logic for the interactive lighting system, linking it to operational modes.

5. Prototyping and Testing
We employed an iterative build-and-test methodology:

• EVT (Engineering Validation): Functional prototypes validated core thermal, aerodynamic, and acoustic performance in lab conditions.

• DVT (Design Validation): Aesthetic and ergonomic prototypes were used for user focus groups. Fully operational units underwent stringent reliability testing (drop, endurance, safety) and environmental stress screening.

• PVT (Production Validation): Pilot production runs verified assembly line processes, part tolerances, and final product quality before full-scale manufacturing.

6. Manufacturing Support
We ensured a seamless transition from prototype to mass production:

• Provided Design for Manufacturability (DFM) and Design for Assembly (DFA) analysis to optimize part design.

• Assisted in the selection and audit of key component suppliers, including the motor and microcontroller vendors.

• Supported the development of production line test jigs and quality control protocols, particularly for final functional testing, noise verification, and safety calibration.

The successful launch of the Pinshile Vertical Hair Dryer created multidimensional value:

• Commercial Value: It established a profitable new product category for Pinshile, capturing first-mover advantage and generating significant media and consumer attention. The product's protected innovations created a substantial competitive barrier.

• User Value: It delivered a truly unique and superior experience—turning a routine task into a convenient, quiet, and caring ritual, thereby enhancing daily life for its users.

• Brand Value: It powerfully reinforced Pinshile's identity as a courageous and user-empowering innovator in the personal care space, building brand equity and customer loyalty for future product developments.

This project exemplifies LKK's capability as a single-source partner for holistic hardware innovation, delivering a market-ready product from initial concept through to manufacturing launch.
