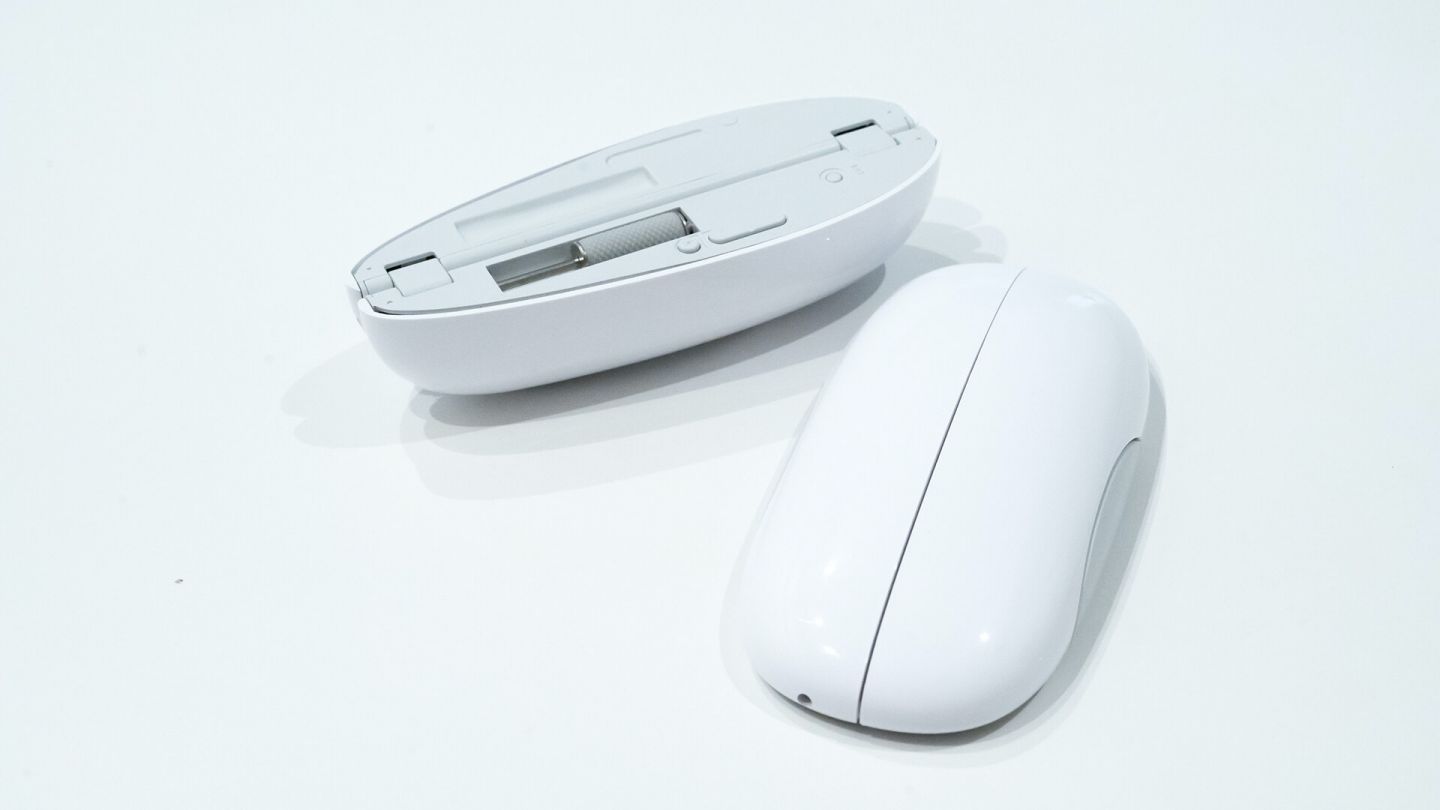

3D Printing Product Prototype: De-Risk Your Development Before Tooling

The $100,000 Mistake You Can Avoid

You have a product design. The CAD files are perfect. You are ready to cut tooling for injection molding. Then you discover a fatal flaw: two parts don't align correctly. The snap-fits break after three assemblies. The PCBA doesn't fit the enclosure.

Fixing these issues after tooling costs 10 to 100 times more than catching them early. This is why a 3D printing product prototype is no longer a luxury—it is a strategic necessity.

In 2026, leading product developers use additive manufacturing not just to "see" their design, but to test, break, and refine it before committing to expensive production tooling. This guide explains how to use 3D printing for product prototyping effectively, what materials to choose, and how integrated partners like LKK ESCRM can help you move from concept to production-ready design with confidence.

Why 3D Printing Has Become the Gold Standard for Prototyping

Traditional prototyping methods—CNC machining, vacuum casting, or soft tooling—are slow and expensive. A single CNC prototype can take 2–4 weeks and cost thousands of dollars. Design changes mean starting over.

3D printing changes the economics of iteration entirely.

The result: you can iterate 5–10 times in the same timeframe and budget as one traditional prototype. This accelerated learning cycle is why hardware startups and established brands alike have adopted 3D printing product prototype as a core development tool.

Types of Prototypes You Can Create with 3D Printing

Not all prototypes serve the same purpose. Understanding the distinction helps you invest the right time and material for each stage.

1. Concept Model (Form Only)

Purpose: Visualize shape, size, and aesthetics. No mechanical function required.

Best for: Early stakeholder buy-in, investor presentations, ergonomic feel.

Typical material: PLA, resin (SLA) for smooth surfaces.

Time: 1–2 days.

2. Functional Prototype (Form + Function)

Purpose: Test mechanical performance, assembly fit, and basic operation.

Best for: Snap-fit validation, button feel, component alignment.

Typical material: ABS, PETG, Nylon, or engineering resins.

Time: 3–7 days.

3. Pre-Production Prototype (Production-Intent)

Purpose: Simulate production part properties as closely as possible.

Best for: Final DFM validation, regulatory testing, pilot runs.

Typical material: Production-grade materials like PEEK, fiber-reinforced polymers, or castable resins.

Time: 1–2 weeks.

The Hidden Value: DFM Validation Before Tooling

The most expensive design flaws are those discovered after tooling is cut. A 3D printing product prototype allows you to perform Design for Manufacturing (DFM) validation without the cost or time of hard tooling.

What You Can Test with a 3D Printed Prototype

• Draft angles – Will the part eject cleanly from a mold?

• Wall thickness – Is it uniform enough to avoid sink marks or warpage?

• Snap-fit performance – How many cycles before failure?

• Component clearance – Does the PCBA actually fit?

• Assembly sequence – Can workers assemble it efficiently?

• Thermal behavior – Does the part distort under heat?

Each of these tests performed on a 3D printed prototype costs pennies compared to discovering the issue after tooling. The "Rule of 10" applies:

Material Selection for 3D Printing Product Prototypes

Choosing the right material for your prototype depends on what you need to validate.

Pro tip: For functional testing of snap-fits or living hinges, use PETG or Nylon—not PLA. PLA is too brittle and will fracture, giving you false failure data.

The Integrated Approach: From 3D Printed Prototype to Mass Production

A prototype is only valuable if it leads to a producible product. Many companies make the mistake of treating prototyping as a separate activity from production planning.

At LKK ESCRM, we integrate 3D printing product prototype services into our full development cycle. Our team of industrial designers, mechanical engineers, and manufacturing specialists work together to ensure that every prototype iteration brings you closer to production readiness.

Our Prototype-to-Production Workflow

1. Concept CAD – Initial design with DFM principles applied from day one.

2. 3D Printed Concept Model – Visual validation and stakeholder sign-off (1–3 days).

3. Functional Prototype – Mechanical testing, assembly validation, component fit (1 week).

4. DFM Review – Identify manufacturability issues; refine CAD.

5. Pre-Production Prototype – Using production-intent materials and processes.

6. Pilot Production – Small batch using soft or bridge tooling.

7. Mass Production – Hard tooling and full-scale manufacturing.

This integrated approach has helped clients reduce development time by 30% and cut tooling rework costs by over 40%.

Case Study: Medical Device Startup Validates Complex Assembly

A medical device startup needed to develop a handheld diagnostic tool with a complex snap-fit enclosure and internal PCBA mounting. Traditional prototyping would have taken 8 weeks and $15,000 per iteration.

Using our 3D printing product prototype service, the team:

• Printed 7 iterations in 3 weeks

• Tested snap-fit durability across 500 cycles

• Validated PCBA alignment with actual boards

• Identified and fixed three interference issues before tooling

Results: Tooling was cut right the first time. First-pass yield at pilot production was 99.1% . Development timeline reduced from 7 months to 4.5 months.

Common Mistakes in 3D Printing Product Prototypes

Mistake 1: Using the wrong material for functional tests. Testing a snap-fit with PLA will tell you it breaks—but the production part in ABS might work perfectly. Match material properties to your test objectives.

Mistake 2: Skipping post-processing. Raw 3D printed parts have layer lines and surface texture that don't represent injection-molded parts. For fit testing, consider sanding or vapor smoothing.

Mistake 3: Not testing assembly. A single part printed beautifully means nothing if 50 parts don't assemble correctly. Always prototype full assemblies.

Mistake 4: Prototyping too late. The biggest benefit of 3D printing is early and frequent iteration. Start prototyping as soon as you have basic geometry.

Mistake 5: Ignoring DFM during prototyping. If your prototype ignores draft angles, it won't help you validate moldability. Design your 3D printed prototypes with DFM in mind.

Frequently Asked Questions (FAQs)

Q1: What is a 3D printing product prototype?

A: It is a physical model of a product created using additive manufacturing (3D printing) to validate design, fit, function, and manufacturability before committing to production tooling. Prototypes can range from simple visual models to fully functional, production-intent parts.

Q2: How long does it take to get a 3D printed prototype?

A: Basic concept models can be printed in 24–48 hours. Functional prototypes typically take 3–7 days, depending on complexity, size, and material. At LKK ESCRM, we offer rapid turnaround as part of our integrated development service.

Q3: Can 3D printed prototypes be used for regulatory testing?

A: For early-stage testing, yes. However, final regulatory certification (e.g., FDA, CE) typically requires parts made from production-intent materials and processes. 3D printing with certified materials (like PEEK or ULTEM) is increasingly accepted for certain medical and aerospace applications.

Q4: How much does a 3D printed prototype cost?

A: Costs vary by size, material, and complexity. A small concept model in PLA may cost $20–$100. A large, complex functional prototype in engineering resin or Nylon may cost $500–$2,000. Compared to traditional prototyping (often $2,000–$15,000+), 3D printing is significantly more affordable.

Q5: How many iterations should I expect before finalizing the design?

A: Most products require 3–7 iterations from initial concept to production-ready design. Complex products with tight tolerances or moving parts may require 10+ iterations. The key is to iterate quickly and learn from each prototype.

Q6: Can you help with production after the prototype is validated?

A: Yes. LKK ESCRM provides end-to-end services from 3D printing product prototype through DFM, tooling, pilot production, and mass production. This seamless transition eliminates handoff risks and accelerates time-to-market.

Q7: What industries benefit most from 3D printed prototyping?

A: Consumer electronics, medical devices, industrial equipment, automotive, robotics, and smart home products all benefit significantly. Any product with complex geometry, tight tolerances, or user-facing ergonomics will see major advantages.

Q8: Do I need a 3D printer in-house or should I outsource?

A: For most product developers, outsourcing to a professional service like LKK ESCRM is more cost-effective. Professional services offer a wider range of materials, higher precision, and integrated DFM expertise that in-house desktop printers cannot match.

Conclusion

In 2026, a 3D printing product prototype is the most cost-effective way to de-risk product development. It allows you to test form, fit, function, and manufacturability before investing in expensive tooling. The result: faster iterations, fewer surprises, and a production-ready design that works the first time.

With 21 years of experience, over 800 designers and engineers, and a proven prototype-to-production workflow, LKK ESCRM is your trusted partner for turning ideas into market-ready products.

Ready to validate your design with a 3D printed prototype? Contact us today to start your development journey.
