Market Insights: Project Background: At present, the laboratory gene sequencer needs to analyze and calculate the number of peripheral equipment, such as computers, monitors, servers, switches, the wiring connection between the equipment is complex and messy, and the laboratory space is generally tight, and the amount of equipment of different unit laboratory sizes is not …
At present, the laboratory gene sequencer needs to analyze and calculate the number of peripheral equipment, such as computers, monitors, servers, switches, the wiring connection between the equipment is complex and messy, and the laboratory space is generally tight, and the amount of equipment of different unit laboratory sizes is not the same.
User requirements:
There is an urgent need for a centralized, fully automated data management platform that can change performance as labs change and avoid wasting resources.
Product Strategy:
After sorting out the relationship between all equipment and in-depth interviews with experimenters and equipment maintenance personnel, the project team integrated all equipment with the concept of modular design.
Optimize the experience:
In view of the limitations of different experimental spaces, the product can be compatible with most laboratory placements, and the basic elements such as the placement method and size of the products are redefined.
Solution:
The design can repeat the middle 2U standard module to 5U, 7U, 9U through the basic shape of 3U size……… to meet different lab equipment volume needs.
The top cover of the product is made of black semi-transparent acrylic material, the whole top cover can be opened as a whole to facilitate equipment care inspection, and the operating status of the internal equipment can be seen through acrylic without opening the top cover.
The unique screen bracket on the top of the equipment realizes that the front machine can still be adjusted to a comfortable viewing angle for the experimenter at different module heights at low cost, and the integrity of the product can still be ensured when removing the bracket according to the needs of different laboratories for the monitor. The product won the 2021 Taiwan Golden Pin Design Award for its outstanding design.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Market Insights: Project Background: FlashBot is a three-class medical surgical device for therapeutic device implantation in heart stent surgery, which is designed to semi-automate the surgical process. The project includes two final plans: external and internal. Innovative Value: The surgical robot can effectively protect the attending doctor from radiation and effectively protect the attending doctor …
FlashBot is a three-class medical surgical device for therapeutic device implantation in heart stent surgery, which is designed to semi-automate the surgical process. The project includes two final plans: external and internal.
Innovative Value:
The surgical robot can effectively protect the attending doctor from radiation and effectively protect the attending doctor from hidden radiation dangers.
Innovation Differentiation:
This product is designed as a coronary artery surgery robot with intelligent technology, and the manipulator part is attached to the muscular robotic arm part, which highly abstracts the lines of biological muscles.
Optimize the experience:
The manipulator can meet its coronary artery ductus stent operation across multiple parts of the patient, and the manipulator part contains a variety of movement modes to ensure the safety and stability of intelligent surgical treatment.
Solution:
The streamlined and dexterous curve of this coronary surgery robotic arm equipment is the core of product modeling, creating an efficient and professional sense of product use, and shaping an intuitive and comfortable product use experience with the large screen design of the console part and the convenient screen operation experience.
The console surface can be separated to operate the trolley for remote control. The product countertop rocker is divided into blocks with color and shape to meet the needs of doctors for convenient and comfortable use.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Product status Functional experience: The usage logic is not rigorous Appearance interaction: no familial language Appearance homogeneity is serious Market research Through the trend analysis of medical trolleys, an intelligent experience with convenient operation of medical care, patients and hospitals is constructed. Product strategy Radar chart analysis for multiple design schemes, after balancing product …
Functional experience: The usage logic is not rigorous
Appearance interaction: no familial language Appearance homogeneity is serious
Market research
Through the trend analysis of medical trolleys, an intelligent experience with convenient operation of medical care, patients and hospitals is constructed.
Product strategy
Radar chart analysis for multiple design schemes, after balancing product appearance, function, human-computer interaction, experience, etc., comprehensively consider the advantages and disadvantages, and then carry out targeted innovation;
User insights
Disassemble the distribution and usage process into more than 120 slices, analyze and optimize user experience details;
Optimize the experience
Build a 1:1 interactive sketch, proofing 1:1 2D drawing, and feel the operation experience;
solution
After thorough communication with customers, the Rococo team conducted tracking user research and analysis, and recorded the behavior characteristics of users throughout the on-site video, and finally summarized all information for slice analysis to study opportunities and pain points.
In the sketching stage, our team analyzes the feasibility of different stacking, scenarios, and functional architecture methods through multiple brainstorms, and finally evaluates the appropriate solution.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc

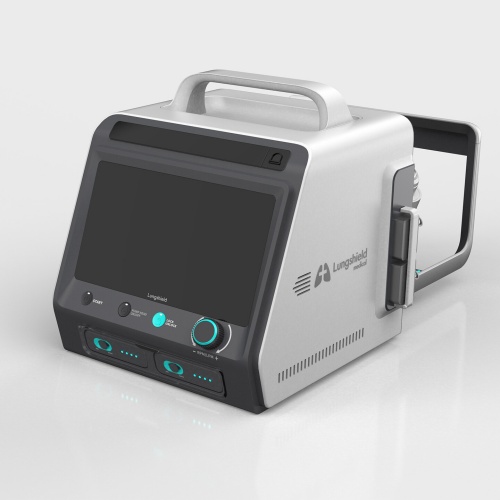

Market Insights: Project Background: ECMO, that is, extracorporeal membrane oxygenation, also known as “artificial lung”, is mainly used to draw venous blood out of the body, excrete carbon dioxide in the blood through oxygenator oxygenation, and pump it back into the human body to maintain normal cardiopulmonary function of patients. Although it does not play …
ECMO, that is, extracorporeal membrane oxygenation, also known as “artificial lung”, is mainly used to draw venous blood out of the body, excrete carbon dioxide in the blood through oxygenator oxygenation, and pump it back into the human body to maintain normal cardiopulmonary function of patients. Although it does not play a therapeutic role, it can buy more time for medical staff. However, the number of domestic ECMO is small, and it has been monopolized by foreign medical groups for a long time, not only the cost of equipment is high, but also the cost of start-up consumables is very expensive. And all these high consumption has changed after the advent of domestic ECMO.
Innovative Value:
The ECMO system developed by Rococo Shield Medical has recently successfully completed the registration of animal tests, further verifying its safety and efficacy, and promoting the ECMO system of Lung Shield Medical into a new stage of development. At the same time, Lung Shield Medical’s laminated membrane oxygenator achieved 16 days of good operation, a major breakthrough compared to the industry’s best 14 days, providing a more reliable solution for long-term cardiopulmonary circulation support.
Design strategy
Laminated membrane design:
Due to the high replacement cost of the oxygenator and the problems of leakage and infection that may occur during the replacement process, the clinical use cycle of the oxygenator is also put forward higher requirements. The gas exchange membrane of the traditional membrane oxygenator adopts a winding method similar to web paper, which has long blood flow path, high transmembrane pressure difference, and is easier to form thrombosis between membranes, which is more suitable for short-term extracorporeal circulation of traditional extracardiac surgery, and the first laminated membrane oxygenator in China to adopt a longitudinal and horizontal overlapping design, shorter blood flow path, larger cross-section, more uniform blood distribution, and lower transmembrane pressure difference, which greatly prolongs the clinical use time, and is relatively more suitable for long-acting extracorporeal circulation.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Customer Background: As a leader in China’s advanced CT technology, Shenzhen Anke has been committed to the research and development of core technologies of medical imaging equipment, and has made breakthrough scientific research achievements in key fields such as CT and MRI. Product Positioning: In the medical device products industry, countless new products or concepts …
As a leader in China’s advanced CT technology, Shenzhen Anke has been committed to the research and development of core technologies of medical imaging equipment, and has made breakthrough scientific research achievements in key fields such as CT and MRI.
Product Positioning:
In the medical device products industry, countless new products or concepts come out every year, the development of science and technology promotes the change of the medical field, medical products protect people’s life safety, medical products play an increasingly important role in public life.
Experience Optimization:

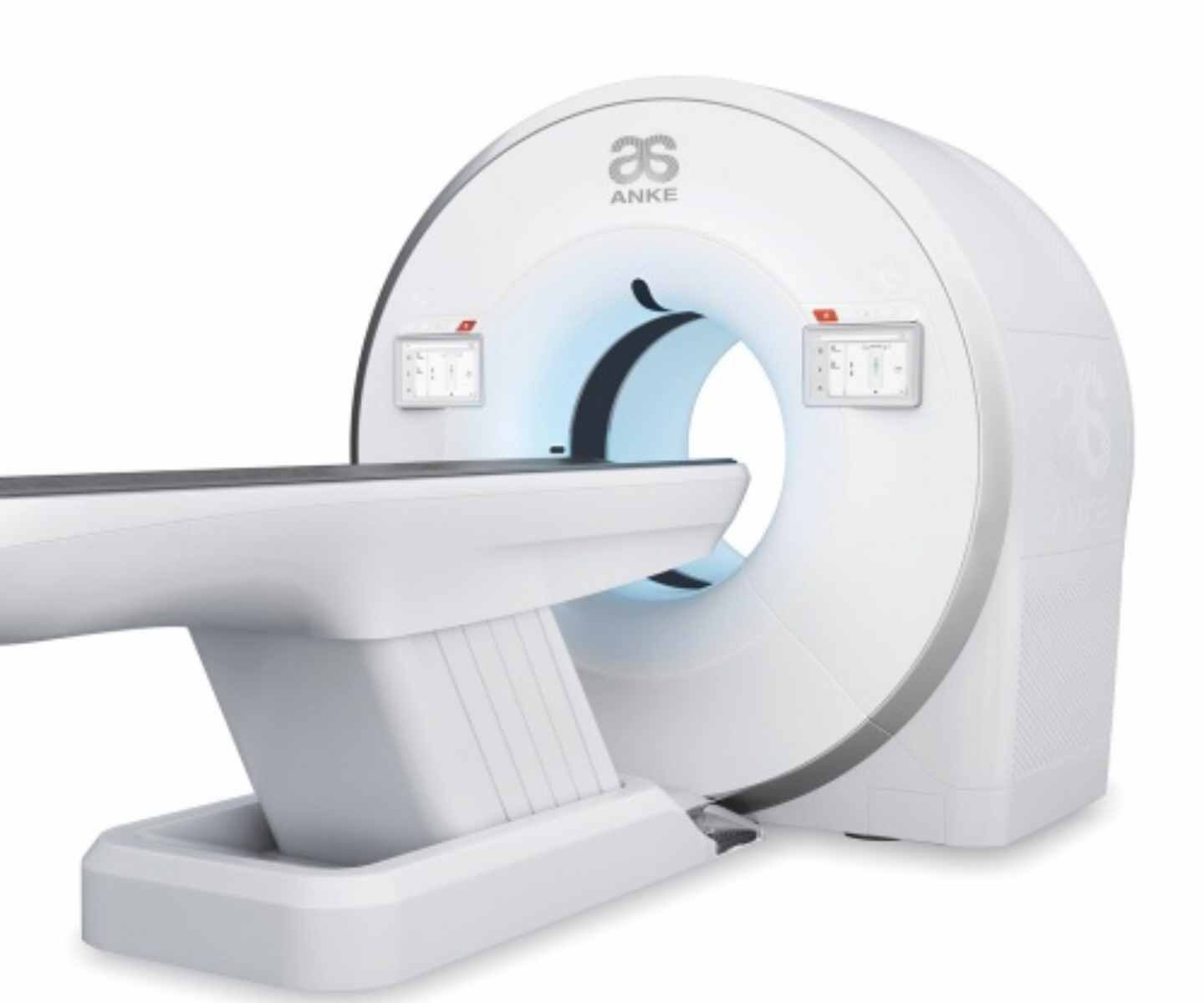

LKK Design has carried out modeling design and interaction design for Shenzhen Anke 256-layer CT, the overall shape adopts concentric circle design to enhance affinity, and the shape of scanning port aperture lordosis makes the visual enlargement of the aperture, alleviates the patient’s claustrophobia, and optimizes the interaction mode of the breathing indicator module to give patients a more comfortable experience.
Technology Upgrades:
ANATOM S800 256-slice spiral CT uses a two-way focusing anti-scattering grating wide-body light wave detector independently developed and produced by Acro, combined with ultra-high-end image chain structure, which can realize 1.5 seconds low-dose whole lung scanning, 2 seconds free heart rate coronary imaging, 5 seconds whole body ultra-large area examination, with 100 images per second reconstruction and whole body energy spectrum imaging and other high-end technologies.
solution
ANATOM S800 256-slice spiral CT has the characteristics of easy operation, convenient maintenance/repair, high-definition image and comprehensive functions.
Can be used for whole body scanning and cardiac coronary imaging, equipped with the latest image processing system, while greatly improving image quality while effectively reducing the radiation dose of patients, providing more powerful diagnostic protection for the medical frontline, the product won the 2020 German iF Design Award with its excellent ingenuity design.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Project Background: Jiangsu Kangshang Biomedical Technology Co., Ltd. is an innovative technology company focusing on family medical care, clinical medical care, Internet medical care and big health ecology. Oxygen generator is a kind of equipment based on compressed air separation technology to separate gas molecules to produce ultra-high purity oxygen. With people’s increasing …
Jiangsu Kangshang Biomedical Technology Co., Ltd. is an innovative technology company focusing on family medical care, clinical medical care, Internet medical care and big health ecology. Oxygen generator is a kind of equipment based on compressed air separation technology to separate gas molecules to produce ultra-high purity oxygen. With people’s increasing concern about health problems and environmental pollution, oxygen generators are becoming more and more people’s choices, and at the same time, oxygen generators have also become one of the hot products for industrial production.
User requirements:
The commissioned design project is a medical oxygen generator, because the form of oxygen generator on the market is too similar, the customer hopes to break away from the traditional appearance, design the oxygen generator with new thinking, and increase the way the product is used and the visual experience is comfortable.
Market Research:
The design fully considers the user’s operation process and working experiment environment, greatly improves the portable and home product attributes of the equipment, differentiates from the products on the market, and enhances the brand image of the enterprise.
Product Strategy:
The design direction is simple and portable, hoping that the product can be more gentle and shorten the user’s experience distance, while simplifying, we open the gap in form in the market, so that Kangshang products can be more significant in the market;
User Experience:
In terms of operation experience, the design concept of full screen is adopted, which greatly improves the visualization and convenience of products;
Optimize the experience:
The side of the product is designed with modular accessories, which can be configured according to the medical scene, so that the audience medical institutions are wider;
solution
In the industrial design process, the Rococo team provided appearance design services for Kangshang Biomedical this time, in the early stage of design, we fully considered the cumbersome and inconvenient use of traditional oxygen generators, and improved the experience of medical staff in use; From the user’s point of view, the designer should stand in the user’s point of view, taking into account the shape, size, material and other factors of the model, in order to meet the user’s aesthetic and practical needs. After preliminary sketch design and market research, the product designer completes the prototype design and prepares it for the next structural design.
Structural design link. In this link, the prototype design should be further implemented, and the component layout and assembly method inside the body should be determined through the design of the structure to ensure that the performance and use effect of the machine are better. Even a very small structural design requires careful consideration in order to increase production efficiency and reduce production costs in series production in the future.
In the prototype production stage, the factory will make a prototype like industrial design and structural design drawings based on the product renderings, 3D files and BOM tables designed by the designer , to verify the results of the design phase and check whether the prototype meets the customer’s needs in terms of appearance and function.
In the mold making stage, the factory starts to design the mold according to the design drawings, and DFM (Design for mold) will be carried out before the mold design Evaluate the feasibility of design drawings from all aspects related to mold design and production, including parting, inlet, ejection mechanism, molding process, post-processing process such as oil injection and screen printing, production efficiency and cost. After the completion of the mold design, the entire mold manufacturing and improvement process will be followed up to ensure the mold quality and manufacturing cycle, while verifying and continuously optimizing the early product design to ensure the quality, cost and delivery time of subsequent product mass production.
The low-volume pilot production stage, which is an essential step for manufacturing companies before releasing new products. It can measure the quality of the product, the cost of the production process, and the feasibility by prototyping several prototypes. In the small batch trial production stage, the manufacturer will improve and confirm most of the process information, and optimize the production process through a certain degree of technical adjustment, improve production efficiency and reduce production costs. When the production process and process flow are approved and validated, the manufacturer can conduct small-scale production testing. The output at this stage is usually tens to hundreds of pieces, and this magnitude covers all aspects of the trial production process. In accordance with strict product standards, manufacturers conduct multiple tests and tests to determine the reliability and durability of products. Manufacturers need to record all production data and evaluate all loss and cost data so that you can refer to this data when expanding production later. Low-volume trial production is an inevitable part of the entire product development process of manufacturing enterprises, and this stage is the necessary preparation for large-scale production. In the pilot production stage, manufacturers can accurately evaluate the advantages and disadvantages of the product process, and give necessary modification suggestions, while also making the product more in line with market needs. On the basis of small-scale production tests and statistical data, small-batch trial production helps oxygen generator manufacturers to determine better processes through the evolution of a small amount of production, and provide a more stable production foundation during formal production, and also lay a good foundation for later product promotion and market expansion.
Mass production link. According to the requirements of mold drawings, many parts that need to be assembled such as internal parts and electronic components of the body are produced, and these components are assembled according to the structural design requirements, and finally a stable and efficient oxygen generator is produced. In this process, it is necessary to operate in strict accordance with the ISO9001 production quality management system to ensure that the quality of each process reaches the corresponding level.
To sum up, in the whole process of product development, designers, manufacturers and engineers should strive for excellence in the internal and external design, structural design, prototype, mold and mass production of the product, to ensure that each oxygen generator is high-quality and efficient, and contribute to improving people’s lives and improving production efficiency, and promoting the rapid development of the industry
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
We are not able to show more product images or disclose the names of our clients because we follow strictly the NDA Agreements. If you are interested to learn more about our work, please contact us.
Project Background
Our customer Ceribell set out to develop the most cost-efficient brain monitor. Replacing the traditional conventional EEG system, our customer is changing the way healthcare providers operate and monitor patients’ treatment. Beginning with wearable apparel sourcing, our customer was ultimately to find the right partner to engineer and develop the product for manufacturing.
LKKER SCM Service Content
This was by no means an easy feat. There were several elements that increased the complexity of the product development.
Wearable Apparel Sourcing
The product requests an extremely high elasticity of apparel. Therefore, LKKER SCM firstly sources apparel suppliers in our existing qualified supplier network and quickly matches with a suitable one. The customer are satisfied with the elasticity of apparel. Also, the apparel also need pass the FDA certification. After several pre-test and pre-trial of multiple colorant of the apparel, the apparel still fails to reach FDA requirement. In the end, LKKER SCM helps our customer develop a colorant supplier who follows traditional tie and dye to ensure all natural material and process without industrial pollution. And the wearable apparel passes the FDA requirement together with the complete set of product.
Conductive Gel Manufacturing Process Improvement
Conductive gel is also an important part of the device operation to improve electrode connection. Therefore, how to produce conductive gel fast and secure is LKKER SCM next supply chain management task. LKKER SCM helps our customer source conductive gel, design the package of the conductive gel, carry out the test plan to verify the design and set up the quality control and inspection standard. To improve the manufacturing efficiency, LKKER SCM also develop a conductive gel automatic assembly equipment to lower the cost of gel production and increase assembly efficiency.
Tooling of Device Enclosure
The brain monitor is portable device with plastic enclosure as well as soft rubber industrial design. LKKER SCM analyze the tooling technology of the design, complete the DFM (Design for Manufacturing) and mechanical design optimization, review the tooling sample and be responsible for the mold quality improvements and process verification to reach ultimate industrial design requirement.
Supply One-stop
LKKER SCM works with the client to manage the product supplier chain including material sourcing (from key materials to accessories and package) and the complete product assembly. LKKER SCM ensures material supply follows customers’ supply plan, consistently monitors supplier risk, carries out incoming QC, and solves any supply chain contingency.
The result
With LKKER SCM’s help, the client largely shortens the product development lifecycle and successfully launches products in the market. With the success of development and market launch, the client successfully closed several rounds of fundraising. The strong, simple, and reliable product also wins positive feedback in the medical device market, and the client experiences high growth and size expansion.
We provide one-stop product development services:industrial design, mechanical design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Project Background: In this highly automated and high-speed society, smart medicine boxes have replaced ordinary medicine boxes and entered our lives. They take on the responsibility of guardians: many elderly people who need to take medicine for a long time often miss their doses without their children and take less medicine. , even forgetting to …
Project Background:
In this highly automated and high-speed society, smart medicine boxes have replaced ordinary medicine boxes and entered our lives. They take on the responsibility of guardians: many elderly people who need to take medicine for a long time often miss their doses without their children and take less medicine. , even forgetting to take medicine, resulting in worsening physical health, and children can not be informed in time.
User needs:
The R&D Department of LKK has jointly designed and produced two products, the smart medicine box, and the portable medicine box, and is committed to building a data-based chronic disease management platform, allowing “family doctors” to serve every patient in every family.
Appearance upgrade:
The main body of the smart medicine box is a four-compartment medicine box equipped with a 7-inch high-definition display screen. The overall appearance is as simple and elegant as Nordic-style furniture.
Optimized experience:
The four wood-grain feet at the bottom can be well integrated into the modern home environment so that users will not have a sense of resistance when using it, which greatly improves the user experience.
Our Solution:
1. The smart medicine box is equipped with 4 grids for placing medicines, respectively placing the medicines in the morning, noon, early evening, and late evening. When the set time is reached, the corresponding grids will automatically pop open, accompanied by a voice reminder function.
2. The user’s medication information can be synchronized to the mobile APP in real-time, and the medication plan can also be synchronized from the APP or the cloud to the smart medicine box, which is convenient for children to monitor the elderly’s medication status and can be used with a small portable medicine box.
We provide one-stop product development services, including industrial design, mechanical design, Electronic Design(Hardware), firmware design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification, mass production, etc
Problems encountered by customers in this project: In the past, due to the inherent industry characteristics of the medical product market, the medical products used in hospitals only need to meet the functions, and there are no special requirements for appearance. On the contrary, civilian medical devices are more particular about the shape and color …
Problems encountered by customers in this project:
In the past, due to the inherent industry characteristics of the medical product market, the medical products used in hospitals only need to meet the functions, and there are no special requirements for appearance. On the contrary, civilian medical devices are more particular about the shape and color of the product. When the traditional channel sales turn to the civilian retail market, the need for enterprises to improve the appearance of their products becomes more and more urgent. LKK design breaks the cold and intuitive feeling of traditional medical products, thus successfully opening the door to the civilian market through product upgrades.
Business and services provided by LKK:
LKK started with the analysis of the user population and found a group of people who “are not patients but need medical equipment”: outdoor extreme sports enthusiasts. These groups of people need to monitor their physical conditions from time to time when exercising outdoors. In the past, the method of understanding one’s physical state by experience was unscientific and accurate, and it was easy to cause harm to the body. LKK seizes the needs and pain points of such people to design a new product positioning.
#Industrial Design
#Shell Mechanical Design
#Prototype Making
#Contract Manufacturing
LKK design achievements and solutions:
Through the appearance design, guide the user to use the correct operation method. The semantics of product style convey a peaceful and intimate feeling and shorten the distance between the product and the user. This is a product for testing blood oxygen levels outdoors. It has strong outdoor characteristics, and the rich and varied rubber encapsulation design meets the outdoor anti-drop and waterproof requirements. The wristband design enhances the user’s wearing comfort. The asymmetrical design in the shape highlights the side buttons and strengthens its control semantics; while the relative protrusion of the display part strengthens the initiative of interaction.

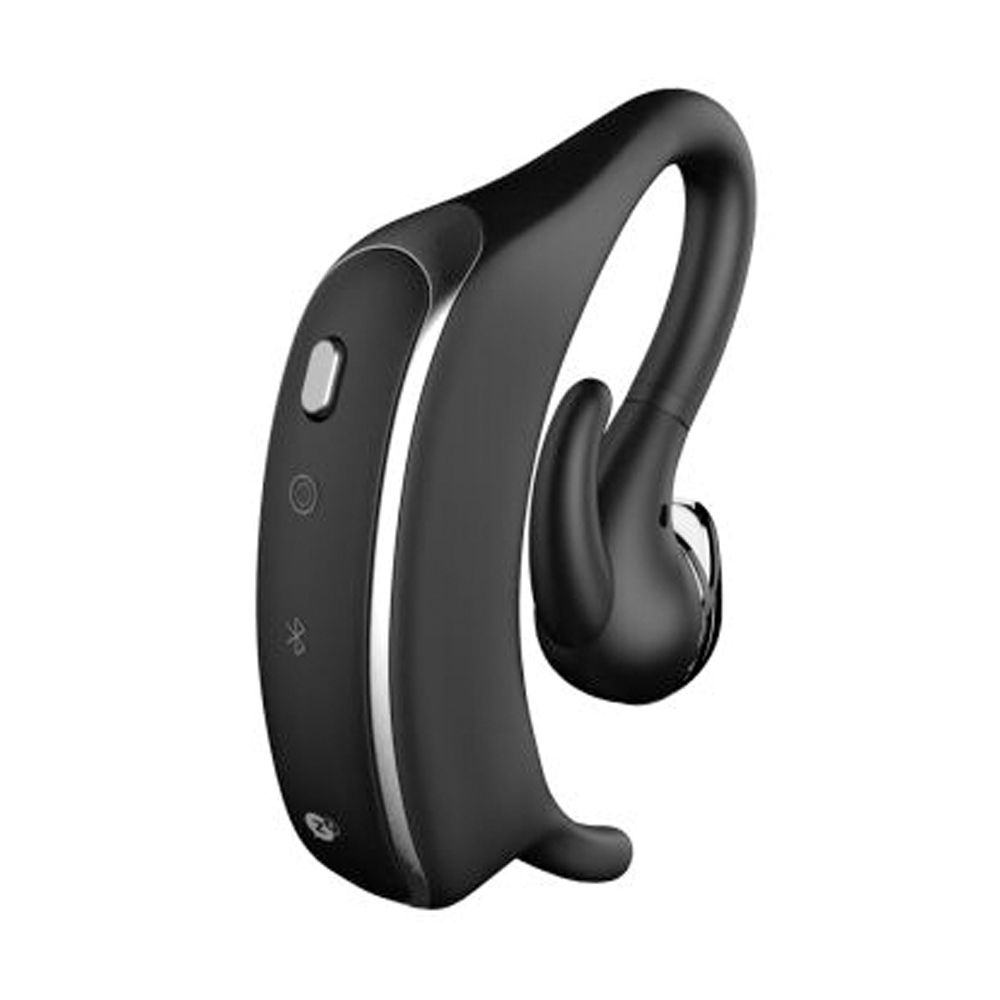

Project Background Snoring is a ubiquitous sleep phenomenon, and it is the enemy of health. Snoring causes repeated cessation of sleep apnea, causing severe hypoxia in the brain and blood. Therefore, in order to keep snorers away from the torture of snoring, the development of the anti-snoring device began. Product Description The product combines the …
Snoring is a ubiquitous sleep phenomenon, and it is the enemy of health. Snoring causes repeated cessation of sleep apnea, causing severe hypoxia in the brain and blood. Therefore, in order to keep snorers away from the torture of snoring, the development of the anti-snoring device began.
Product Description
The product combines the suitability of material selection, the rationality of mechanical design, the mold design cost and processing convenience, which perfectly restores the product design and meets the functional requirements of the product.
Services We Provide
Product development, new product development project management, manufacturing feasibility assessment, mechanical design, supplier development and management, mold design and production, product testing and verification, quality management, supplier management, supply chain manufacturing
Project Highlights and Solutions
The function of the hardware prototype of VVFLY Anti-Snoring Device has been basically realized. The difficulty lies in how to ensure that the product meets the design based on ergonomics and aesthetics. It is more difficult to implement.
excellent solution – optimize product mechanical design.
In terms of product structure, the shell is divided into two parts, the purple part is super tough elastic hard glue to ensure the deformation of the product, and the blue part is soft parts to ensure the comfort of the product.
Market Insights:
